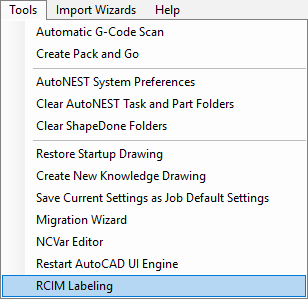

The Label Designer is accessed through the 'Tools' drop down in Router-CIM Automation Suite. This Label Designer allows you to make a template of where you want part properties to appear on a printed label.

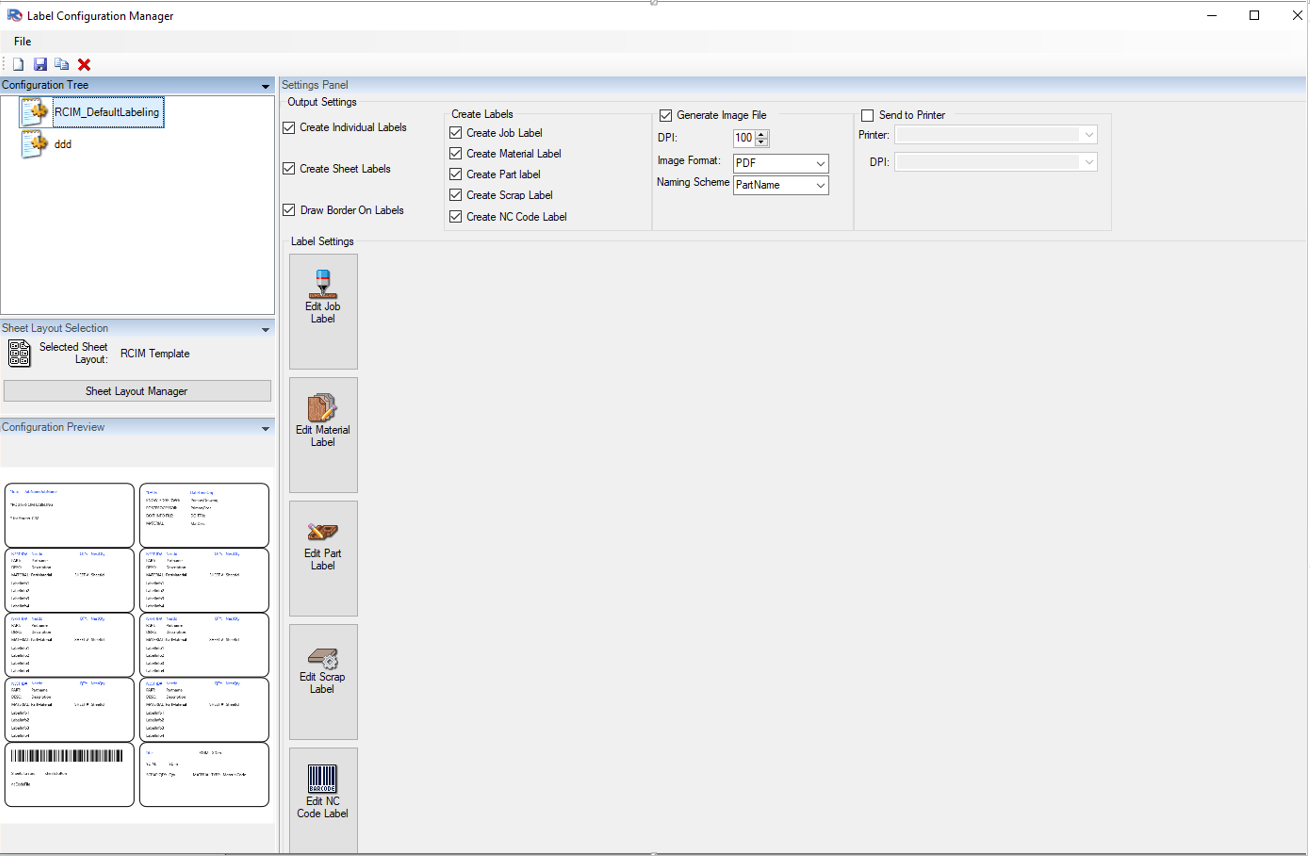

The Label Designer consists of 3 areas, the Menu Bar, Sheet Layout Manager and the Label Designer.
The Menu Bar lets you create a new configuration, save, copy, delete, import and export label configurations.
New: This will allow you to create a new label configuration.
Save: Saves the currently selected label configuration.
Copy: Makes a copy of the currently selected label configuration
Delete: Removes the currently selected label configuration
Import: Allows you to import a label configuration from another Router-CIM Automation Suite computer
Export: Allows you to export for the currently selected label configuration for Import onto another Router-CIM Automation Suite computer
The Sheet Layout Designer lets you create a configuration for sheet labels that can be printed to your office laser or inkjet printer and size a label for a roll label printing system. The sheet layout will be determined by the labels that you intend to use.
To create a Sheet Layout, go to the 'Creating a Sheet Layout' section.
The Label Designer lets you create custom labels that can be individually created or designed to match a sheet template that you have created or to create individual labels for use with the Touch-N-Print labeling system or a stand-alone printing system.
Note: If creating labels for a sheet template, the size of the label must match exactly to the label size determined by the Sheet Layout.
There are 5 different labels that you have access to:
1) Part Label
2) Job Label
4) Scrap Label
Select a label listed above for more information.
Once your labels have been designed and/or your sheet layout templates, you will create a configuration or multiple configurations that you want for your labels when a job is run in Router-CIM Automation Suite.
For information setting up a configuration for use in the job, go to the 'Automation Label Settings' section.
