Creating a Label

Creating a custom label using the Router-CIM Label Designer is a simple process:



Open RCIM Labeling. The RCIM Labeling is accessed through the 'Tools' drop down in Router-CIM Automation Suite.



LD_Open



Once the Router-CIM Label Designer opens, go to the upper left and select the 'File' menu and the option 'New'. This will create a new configuration:



New_Label_Configuration2



New Configuration - Creates a new label configuration for the user to design

Save Configuration - Saves the selected configuration

Copy Configuration – Copies the selected configuration

Delete Configuration – Deletes the selected configuration

Import Configuration – Allows you to import a label configuration from another Router-CIM Automation Suite computer

Export Configuration – Allows you to export for the currently selected label configuration for Import onto another Router-CIM Automation Suite computer



Or you can select the new option



New_Label_Configuration

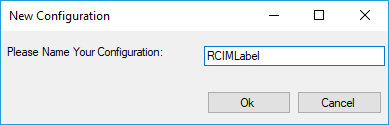

Once 'New Configuration' is selected, you will be able to name your label configuration:



New_Configuration



After naming your configuration, you will be directed to select a Sheet Layout. At this point, you can create a new sheet layout or select from an existing sheet layout.



For more information on creating a new sheet layout, please go to the 'Creating A Sheet Layout' section.



RCIMLabel_SLM_Interface

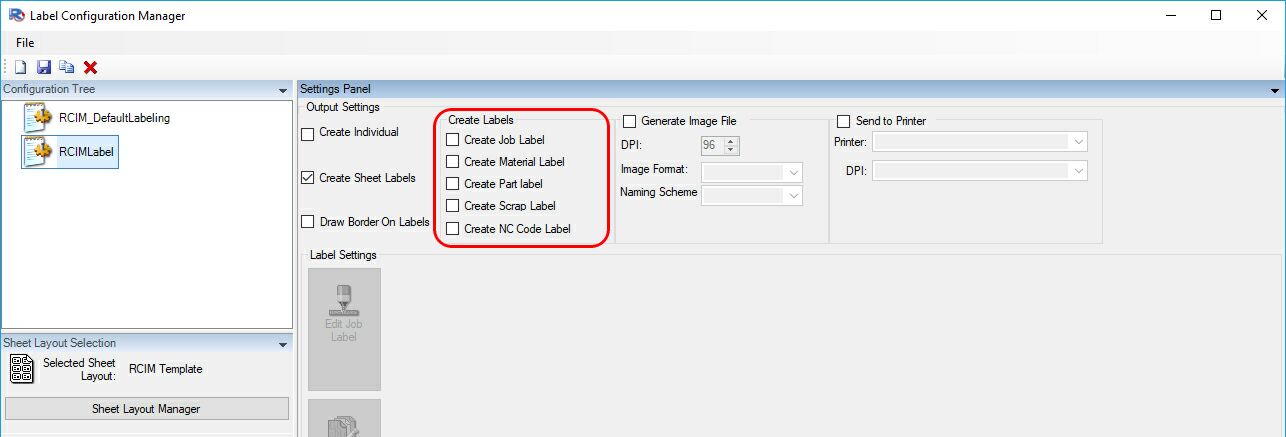

Once a sheet layout is selected, you will then be able to select the type of labels you would like to create with this configuration.



Create_Labels_Selection



Each label configuration can have up to 5 label types:

 Job Label

 Material Label

 Part Label

 Scrap Label

 NC Code Label



Each label type corresponds to the available fields accessible once the label has been created. The available fields for each label are located at the end of this section.

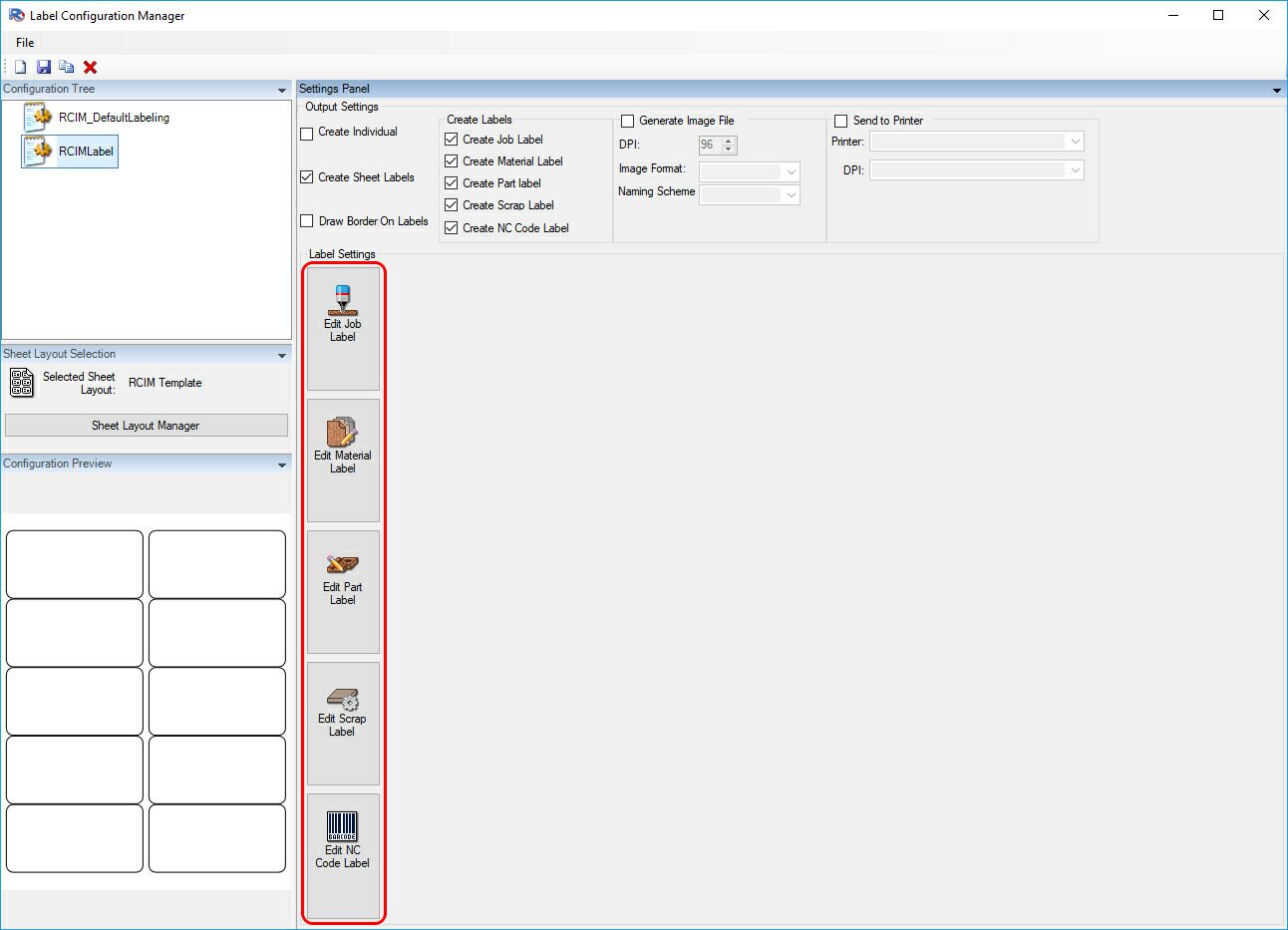

When the label types are selected, you will have access to the edit label options below. You will select the label type you want to edit and this will load into the Label Settings window.



Label_Selection_Edit

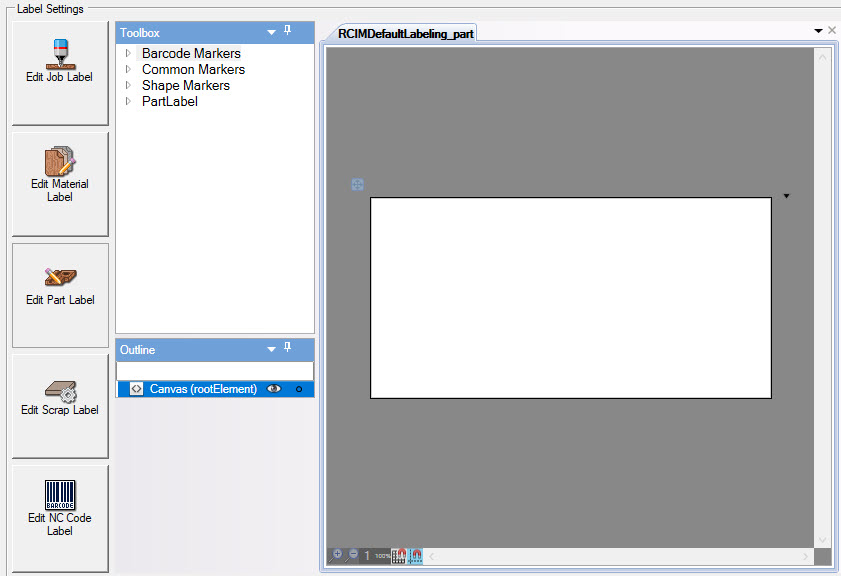

Once a label type is selected, you can start to create that label:



Label_Settings_Part1



The available fields for the label are located on the left side of the Label Designer. Expand each to show the available fields for that type of label:



Label_Settings_Part_Fields

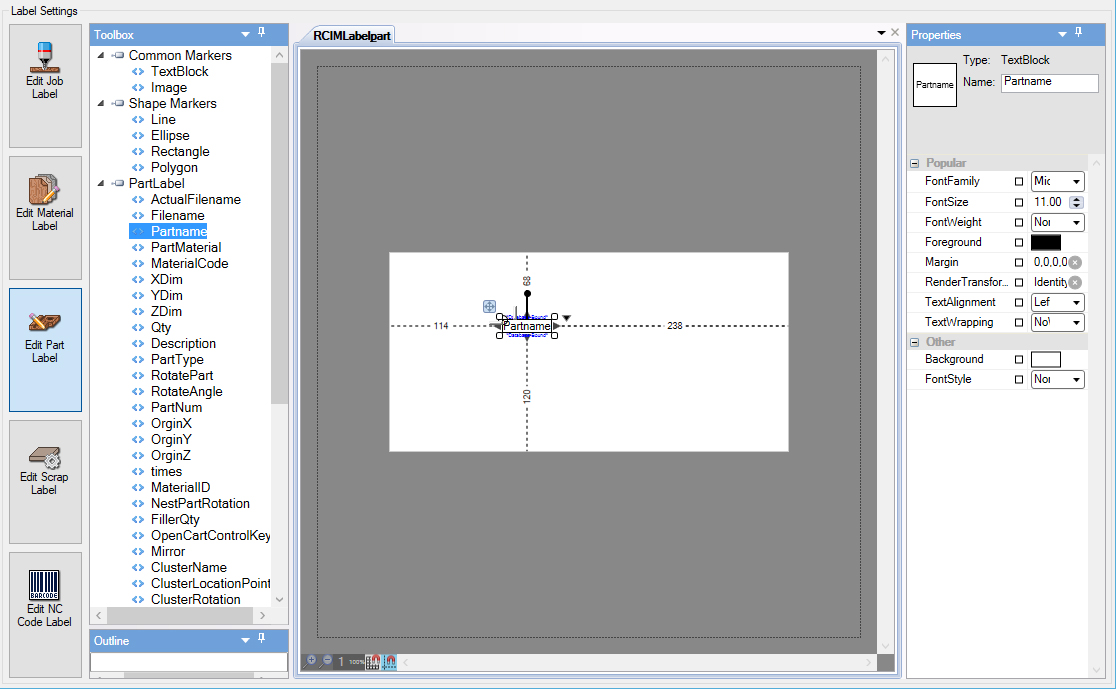

To add a field to you label, simply select the field you want and then click in the label to place the field on the label or you can select the field you want and drag and drop it onto the label:



Label_Settings_Field_Placement

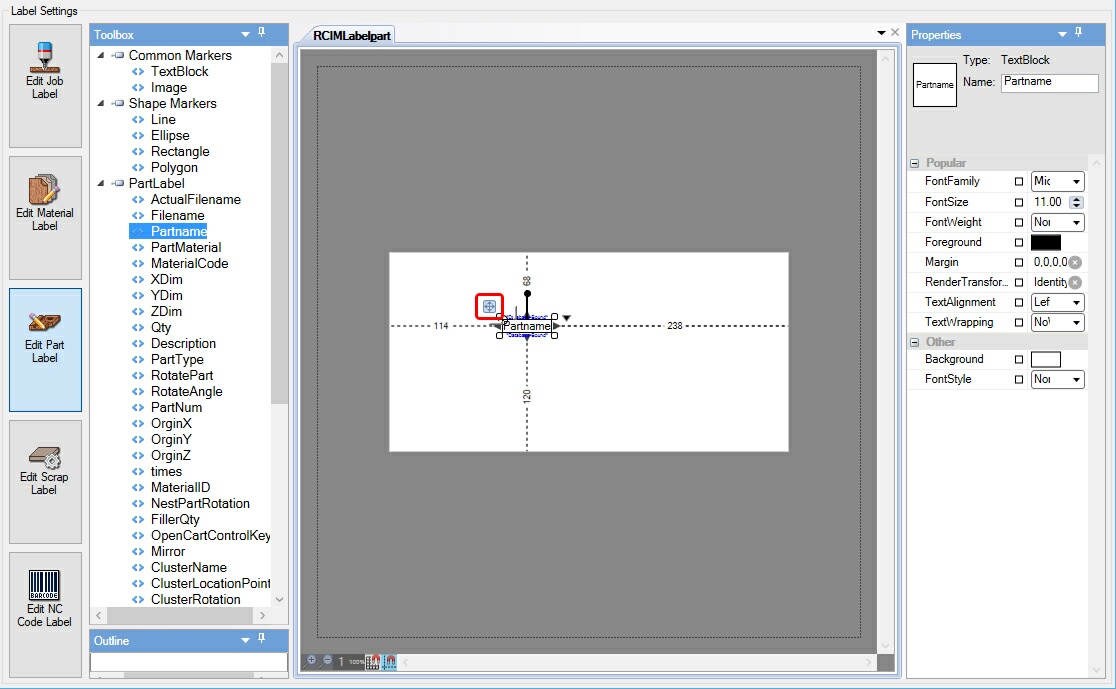

To move the field, hold down on the cross hairs to drag the field to the desired location on the label:



Label_Settings_Field_Move



Repeat the process to add all the label fields that you need to your label.



Barcodes and/or QR Codes



To add a barcode or QR code, expand the 'Barcode Markers' section.



Label_Settings_Barcode



Just like adding any other field, simply select the BC3of9 or QR and place it where you would want the field on the label.

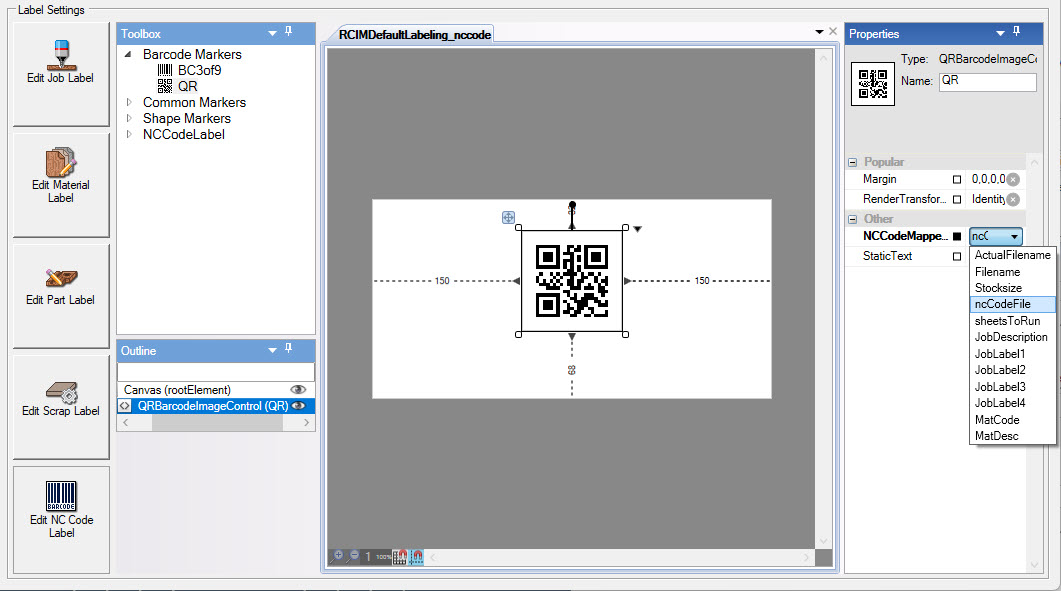

When you have it placed, on the right side under 'Properties', select the drop-down for the NCCodeMapped option to select the available fields for the Barcode or QR code.



Label_Settings_BarcodeMap

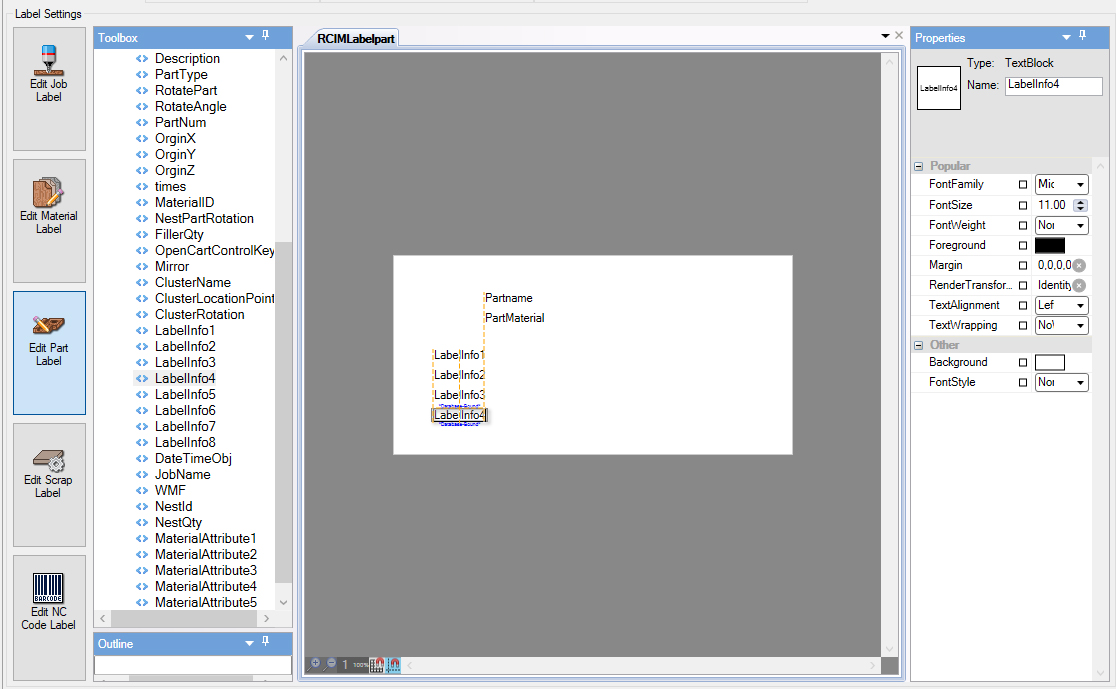

Once your fields have been added, you can use the alignment options by right clicking on a field or move the fields to the correct locations and follow the auto-alignment feature:



Label_Settings_Field_Align

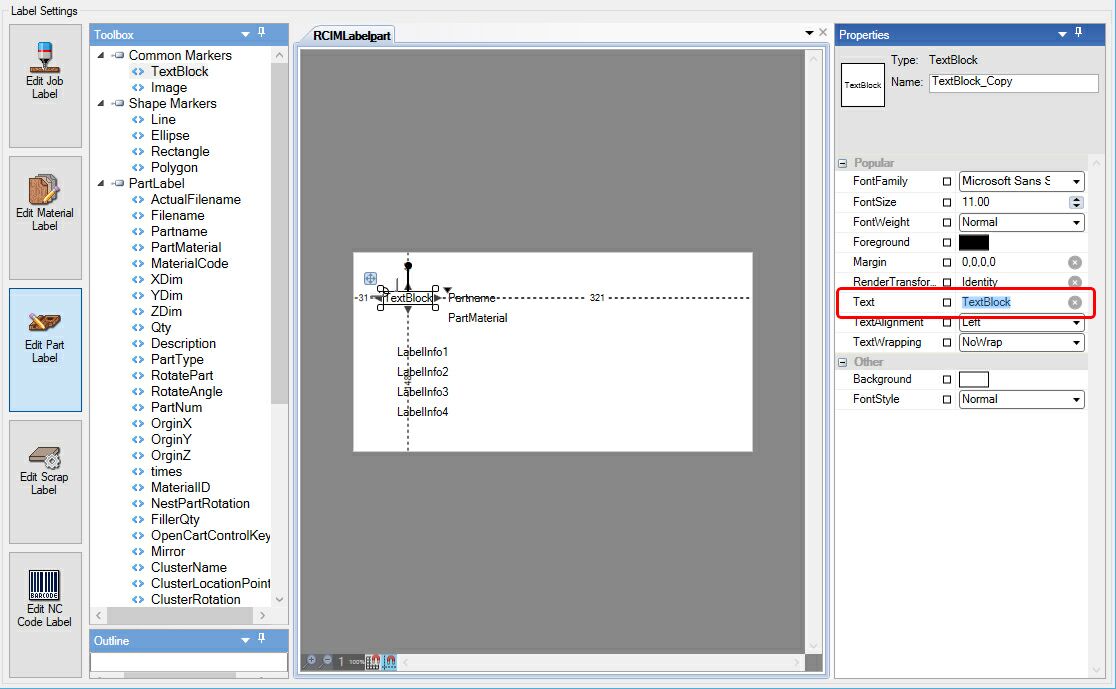

The label fields will display the information provided by Router-CIM Automation Suite. A text block can be added as a identifier by using the TextBlock field under Common Markers. This is also where you can add an image such as a company logo.



To change the text, you can select in the TextBlock field or adjust the text located under Properties on the right side of the default label screen.



Label_Settings_Field_TextBlock

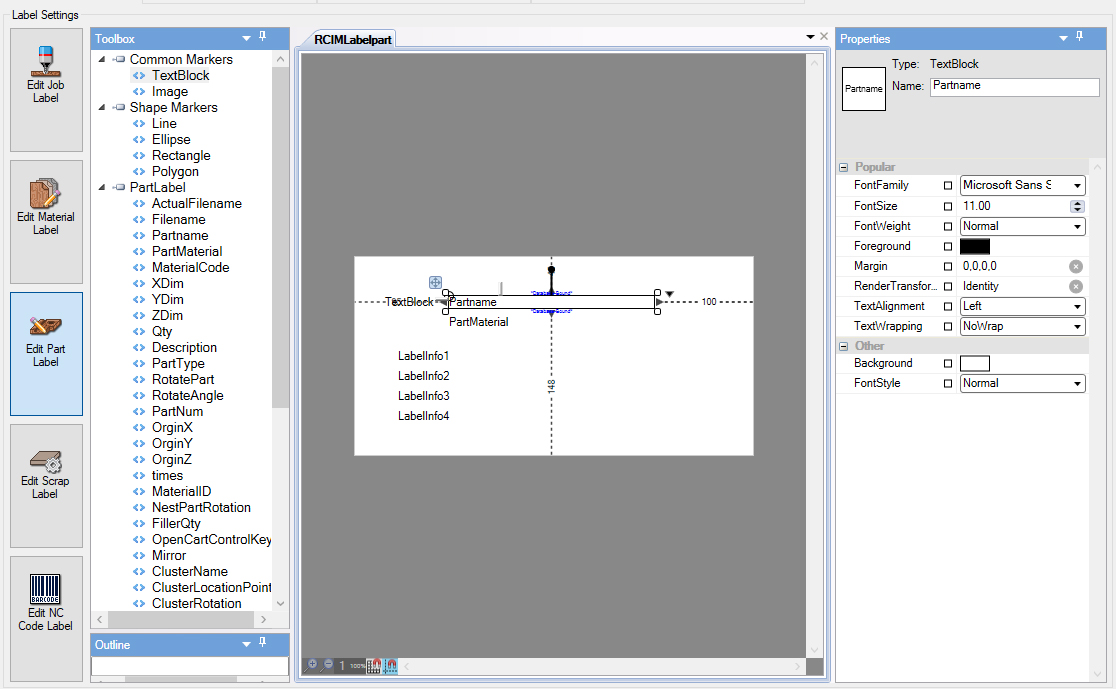

All fields can be sized to match the information you will be providing. To size a field, use the arrows to adjust length and width:



Label_Settings_Field_Size

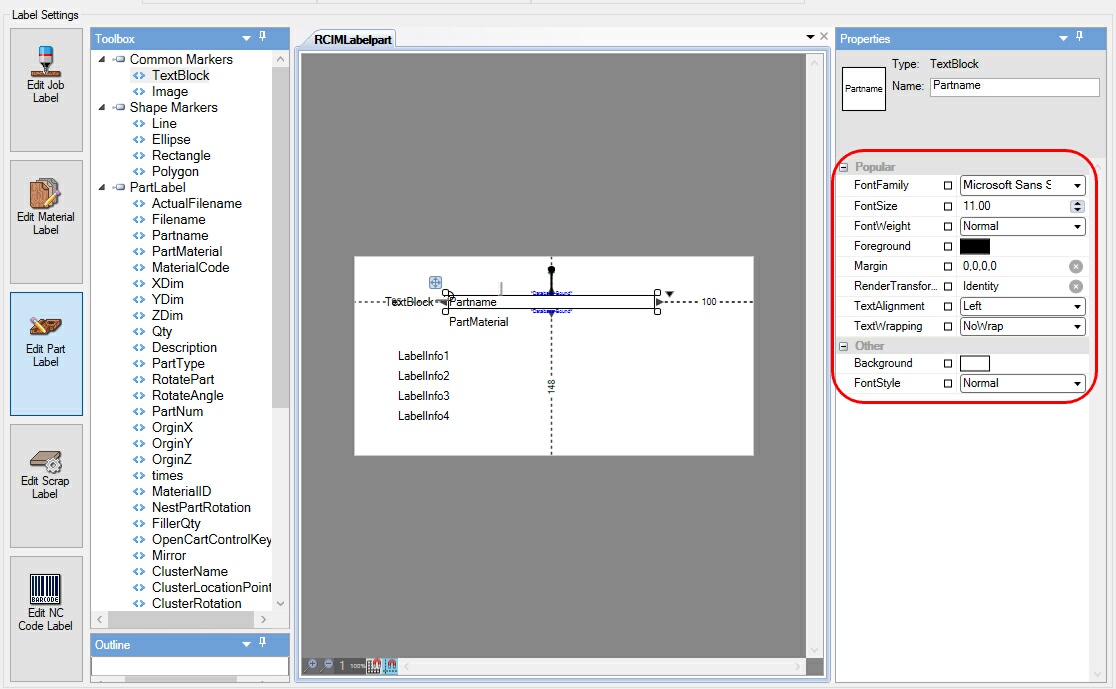

When a field is selected, on the right side of the Label Designer are the properties for that particular field. You can adjust items such as color, font size, font style, font family, text alignment and wrapping:



Label_Settings_Field_Font

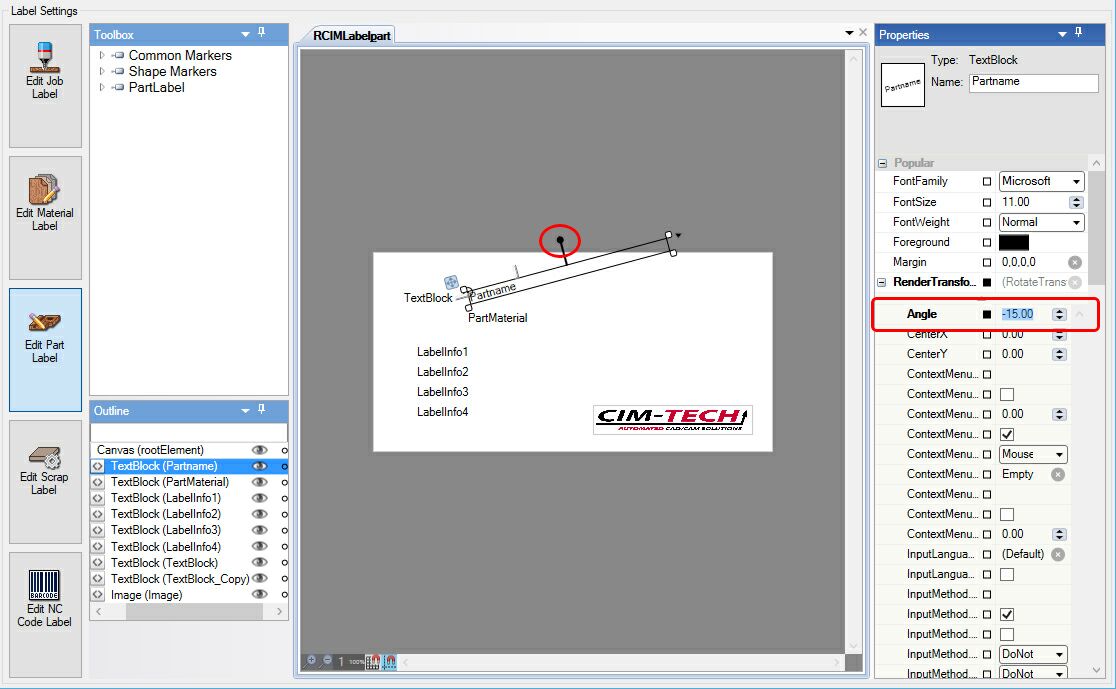

To adjust the rotation of the field, select the field that you would like to rotate and grab the rotate grip as indicated below. While holding the left mouse button down, you can move left or right to adjust the rotation angle of the field. For more precise rotation angles once you have started, on the right side you will see a heading 'Render Transform'. Select the + symbol to expand the options. Directly underneath the heading you will see the Angle field. You can type in the precise angle that you would like the field to be rotated.



Label_Settings_Field_Rotate

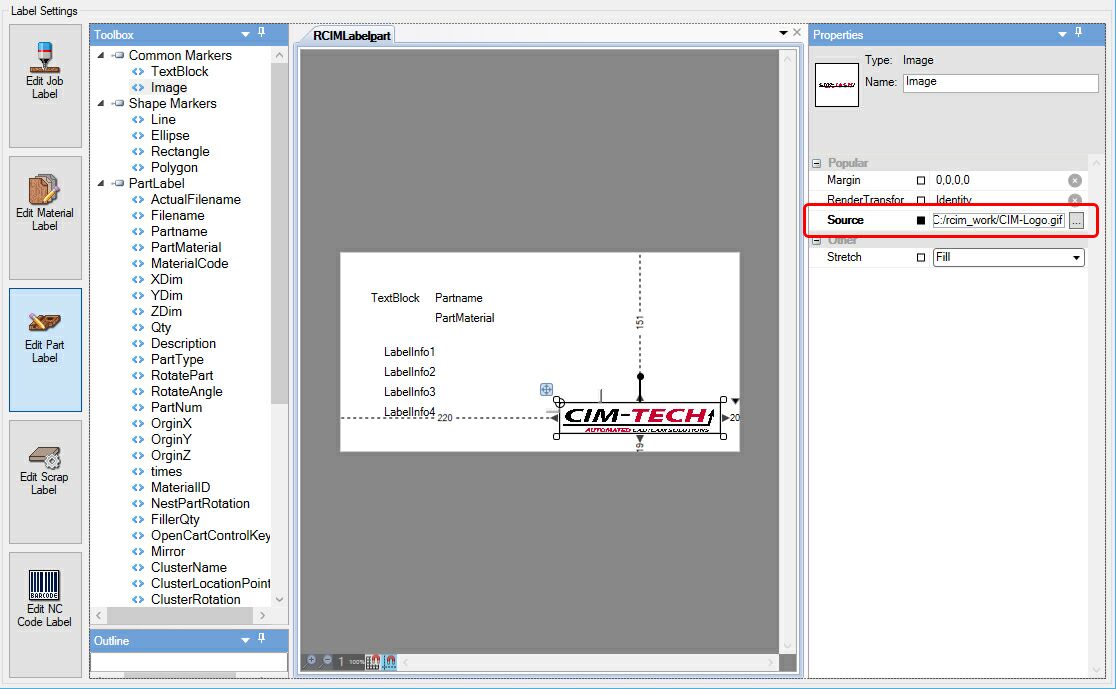

Under Common Markers, you can also insert an image such as a company logo. Under the properties for the image field, you will see the 'Source' option. This is where you define the file path for the location of the image. Use the gray box with the three dots to navigate to the image file location. Acceptable file types are JPEG, PNG, JPG or GIF.



Note: This is NOT the image of the part in the part label. Refer to the Part Label Fields Available section below for information on placing a part preview picture on the labels.



Label_Settings_Field_Image



Once you have all the fields, text blocks and/or images you need for the label, it is then time to save the label.



Go to the upper left of the Label Configuration Manager and select 'File' and then 'Save' or select the save icon.

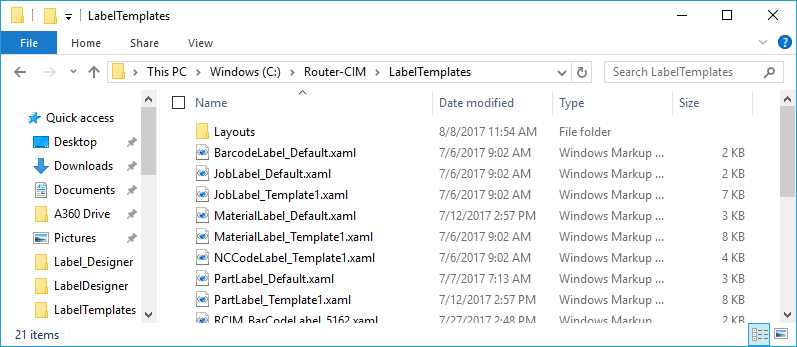

Labels will be saved in this location: C:\Router-CIM\LabelTemplates



LD_Label_Location



Repeat the above steps for each required label if necessary.



Your label is now ready to be used in a Router-CIM Label Configuration.



Part Label Fields Available:

Part Name

Part Material

Material Code

Material ID

RCIM Part Number

XDIM

YDIM

ZDIM

Quantity

Filler Quantity

Description

Label Field 1

Label Field 2

Label Field 3

Label Field 4

Label Field 5

Label Field 6

Label Field 7

Label Field 8

Label Field 9

Label Field 10

Label Field 11

Label Field 12

Label Field 13

Label Field 14

Label Field 15

Label Field 16

Date and Time

Nest ID

Sheet ID

Nested Quantity

Job Name

Job Description

Part Type (DWG, DXF or SCN)

Veneer Match Name

Veneer Match Location Point

Veneer Match Rotation

Material Attribute 1

Material Attribute 2

Material Attribute 3

Material Attribute 4

Material Attribute 5

Origin Shift X

Origin Shift Y

Origin Shift Z

Rotate Part (True or False)

Rotated Angle

Part Mirrored (True or False)

Cart Control Key

Nest Part Rotation

Origin X

Origin Y

Origin Z

Job Label 1

Job Label 2

Job Label 3

Job Label 4

Part Multiplier

Code Single Code File

Code Single Code File Full Path



You can also add a part preview of the image to the label. In order to add a part preview use a Part label, insert the field from the left hand side called 'WMF'. Once added, you can move and size the image box to your desired look. Router-CIM Automation Suite will use this field to place a picture of the part that was processed:



Note: If you would like to have the part preview on the label, make sure that 'Place Preview on Labels' is selected under the 'Label Generation Settings'.



Label_Settings_Field_WMF



Job Label Fields Available:

Date and Time

Job Name

Router-CIM Version

Job Description

Job Label 1

Job Label 2

Job Label 3

Job Label 4



Material Label Fields Available:

Date and Time

Job Name

Nest Name

Material Description

Material Code

Thickness

Material Attribute 1

Material Attribute 2

Material Attribute 3

Material Attribute 4

Material Attribute 5

Job Label 1

Job Label 2

Job Label 3

Job Label 4

Material X Dimension

Material Y Dimension

Primary Knowledge Drawing

Primary Post Processor

Primary DOIT File





Scrap Label Fields Available:

Date and Time

Material Description

Material Code

Scrap ID

Thickness

X Dimension

Y Dimension

Job Label 1

Job Label 2

Job Label 3

Job Label 4

Bin

Material Cost



NC Code Label Fields Available:

Date and Time

NC Code File Name

Job Name

Number of Sheets to Run

Stock Size

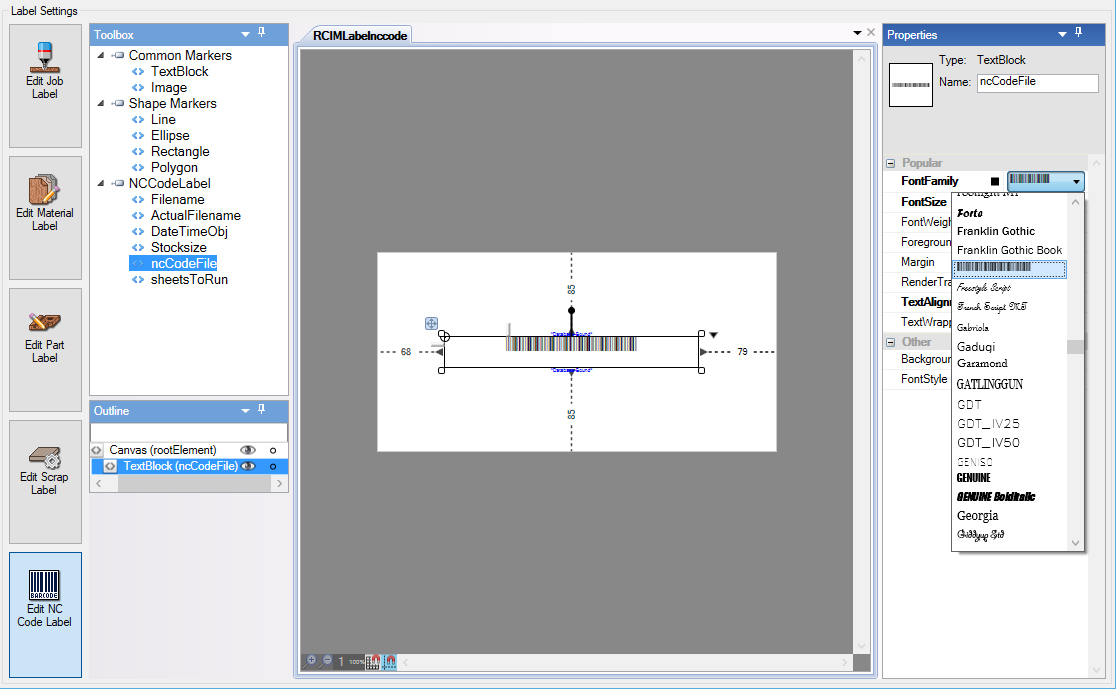

Label_Settings_NC_Barcode
