Add Part



Add_Part_Icon

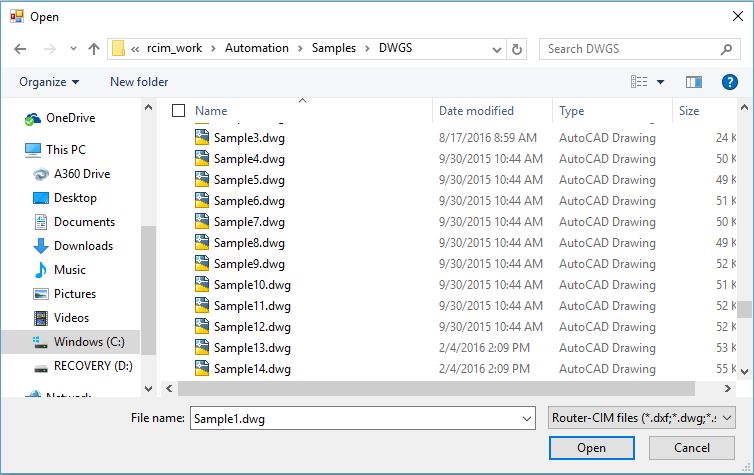

Selecting this option will open the Add Parts window.  This window has several options, you can select default folders rcim_work, or Router-CIM as well as set the default types of files to DWG, DXF, or SCN files.  You can see a preview of the part, unless multiple parts are selected.



Note: Part locations have an 80 character limit.



Add_Part



To scale your parts from inch to metric or metric to inch prior to processing the job, please go to 'Scale Part Geometry in Router-CIM Automation Suite'.
