Selecting a Job

Selecting a Job

Once this program is open, select Samples in the job tree:

This will open a selection of folders, each containing multiple jobs:

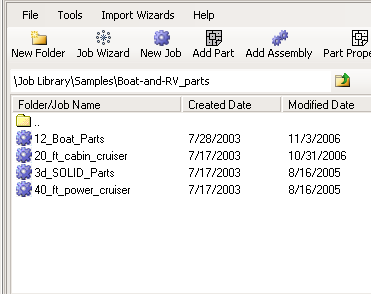

Select the Boat-and-REV_parts folder and the jobs inside that folder will be visible:

You can see that there are 4 jobs, along with the date they were created and the date they were last modified.

Select the 12_Boat_Parts job from the list and on the right side of the window, you will see all 12 parts listed:

Each of the parts has a part number, a name, a quantity, a material, and shows the folder where the part is stored on your computer or network.

Next you will change some of the parameters for one of those parts to see how easy modifying a job can be.
