Engrave



Adv_Engrave_Icon

This cycle uses advanced algorithms to automatically engrave 2D letters/geometry. This calculation has built-in functionality to modify the input geometry in order to cover certain intersections



Note: The Advanced Machining Cycles are an optional add-in that will give you additional cutting cycles with advanced machining capability. Contact sales@cim-tech.com for more information.

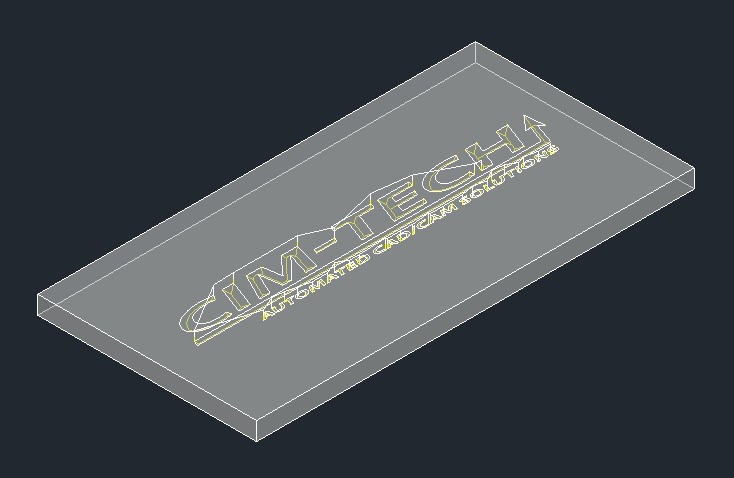

Advanced_Engrave_Example

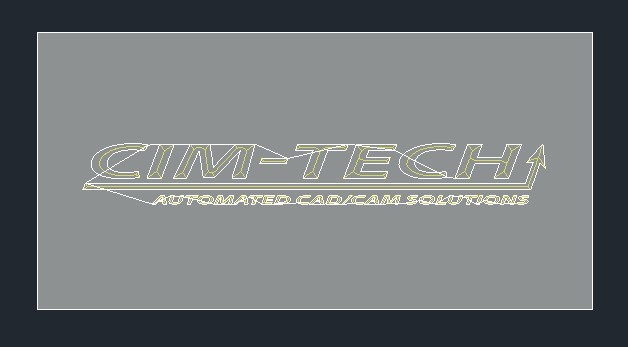

Advanced_Engrave_Example2

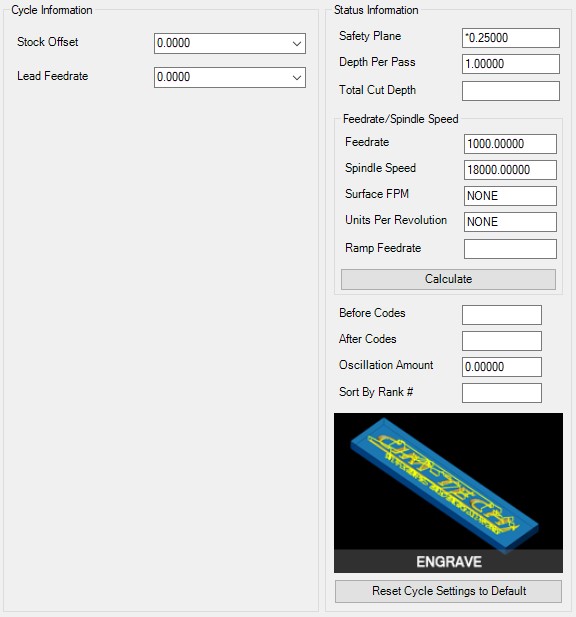

Advanced_Engrave_Control_Panel



The following parameters effect the toolpath creation:



Stock Offset <0.0000>

The value entered here will be added to the cut offset to provide material left for a clean up pass on the pocket with a separate tool.



Lead Feedrate <0.0>

This sets lead-in and lead-out feed rates. The default is 50%. Setting this parameter to any number will override the lead-in feedrate to the number specified. Setting this parameter to a percentage, 25% (must include the % symbol) will adjust the lead-in based on the feedrate identified by the percentage defined on CNC machines with this capability.



**Changing values in the cycle parameters may yield unexpected results with some settings or on some geometry.  Examine the toolpath and NC Code carefully before running your machine tool if you change these default settings.
