Part Window Right Click Options

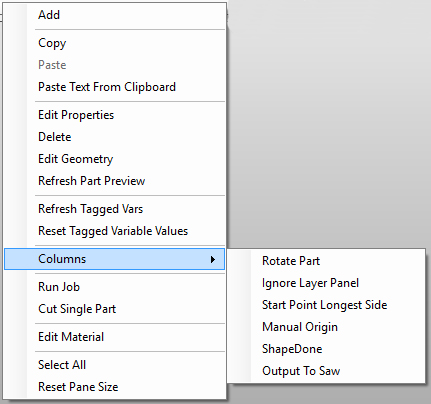

Router-CIM Automation Suite offers right click options for the parts in the currently selected job.



Right_Click_PW



Add

Selecting this option will open the Add Parts window.  This window has several options, you can select default folders rcim_work, or Router-CIM as well as set the default types of files to DWG, DXF, or SCN files.  You can see a preview of the part, unless multiple parts are selected.



Copy

Selecting this option will copy the part/multiple parts from the parts list.



Paste

Selecting this option will paste the part/multiple parts and add them to the bottom of the parts list.



Paste Text from Clipboard

Selecting this option will paste any text that is currently held in your clipboard.



Edit Properties

This selection opens the part properties window.



For more information go to the Part Properties section.



Delete

Selecting this option will delete the selected part from within a job.



Edit Geometry

Selecting Edit Geometry will open AutoCAD and show the currently selected part opened from its original location.  If no part is selected, you will be prompted to select a part first.



Refresh Part Preview

Selecting Refresh Part Preview will regenerate the preview of the part in the Part Previewer.



For more information go to the Part Previewer section.



Refresh Tagged Variables

Selecting Refresh Tagged Variables will regenerate the tagged variables on a Macro part (SCN).



For more information go to the Tagged Variables section.



Reset Tagged Variables Values

Selecting this option will reset the tagged variables of a macro back to their original values.



Columns

This allows you to add additional columns to the Part Window to show basics of some of the part properties.



 Rotate Part - Shows if 'Rotate Part' is checked under the part properties

 Ignore Layer Panel - Shows if 'Ignore Layer Panel' is checked under the part properties

 Start Point Longest Side - Shows if 'Start Point Longest Side' is checked under the part properties

 Manual Origin - Shows if 'Manual Origin' is checked under the part properties (Macros only)

 ShapeDone - Shows if 'ShapeDone' is checked under the part properties

 Output to Saw - Shows if 'Output to Saw' is checked under the part properties



Columns



Run Job

This option starts the selected job in Router-CIM Automation Suite and begins processing.



Cut Single Part

This option will process only the currently selected part.



Edit Material

This option will open up the currently selected part's material in the Material Editor.



For more information go to the Material Properties section.



Select All

This option will select all the parts in the current job.



Reset Pane Size

This option will reset the pane size of the Router-CIM Automation Suite window to the defaults.
