Horizontal Finishing XY



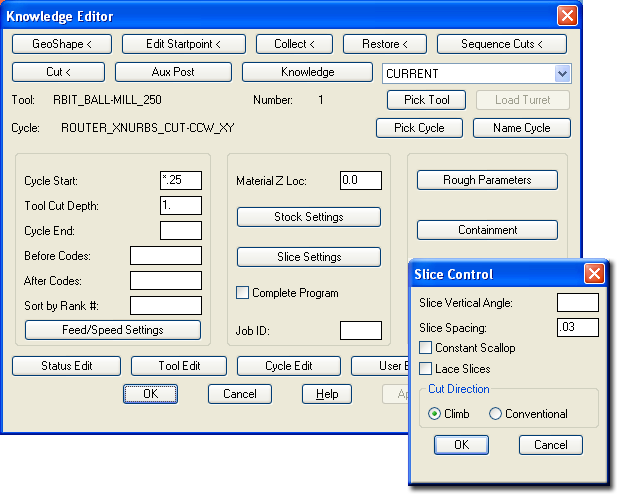

Select the XNURBS_CUT-CW_XY Cycle.  Activate the Cut Button after duplicating the Knowledge Editor entries shown below using MCADTPC.DWG, to achieve similar results.  The only parameter changed here is to set the Slice Spacing at .03 to show a more reasonable step over on the tool paths.





NurbsCCW_XY_1

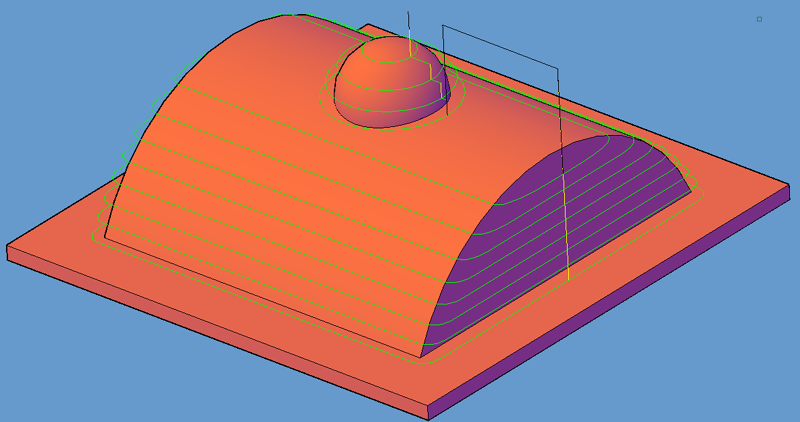

When Prompted for Z Level Completion:



Nurbs_CCW_Example1



Select 'NO' to the "Z Level Completion Dialog".



YES is used when a Cavity or Core contains multiple hills and valleys.  YES will cause the toolpath calculator to complete all toolpath(s) required at each Z level, retract, and then go down to the next Z level.

NO continues to cut downward until complete.



Press the 'Cut' Button.

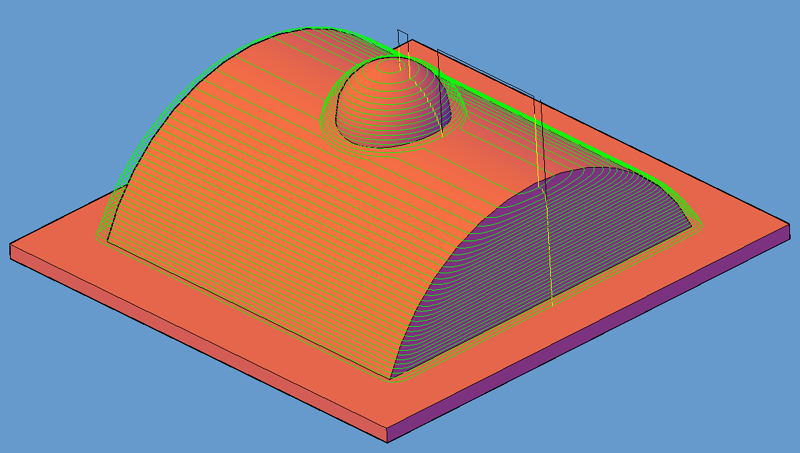

You should get a tool path like the following:



Nurbs_CCW_Example2
