Summary Report Subfolder



This is optional, but if the 'Create Summary Report' option is checked in the job under the Printing and Labeling tab, the summary report data files and Excel spreadsheet will be contained in this folder for both the nested jobs and jobs that were run as 'Code as Single Part'.



You will open the .xlsm file that begins with your Job Name.



The summary report contains information relevant to the job that was run in Router-CIM Automation Suite. Information such as code file names, cycle time estimates, yield, material used, etc.



For more information on the cycle time estimates, click here.



The folder will display only if you the selection was made to show this folder located in File/Settings under the 'Systems Folder' tab.

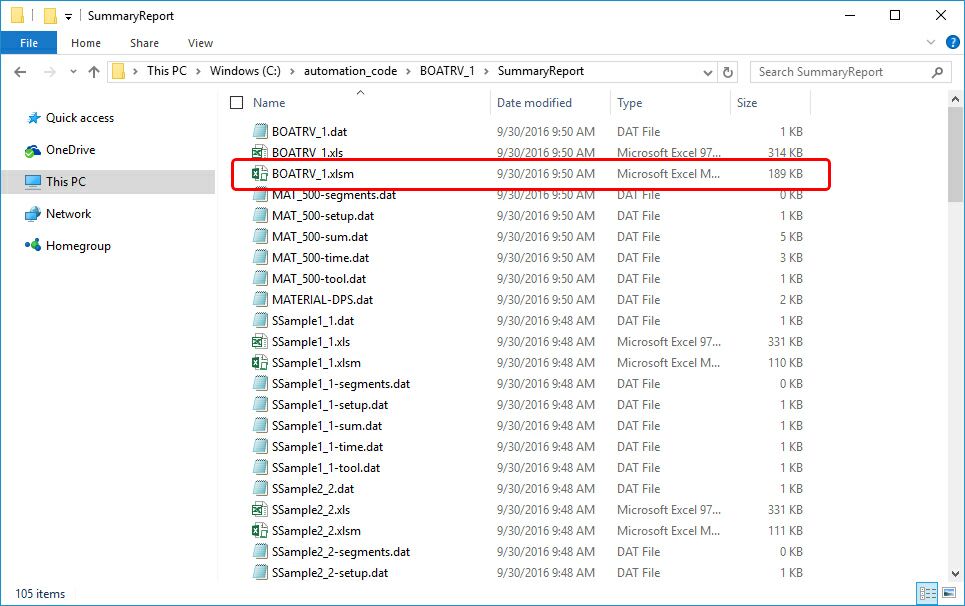

Results_SummaryReport



NOTE: Security settings in Excel may need to be adjusted in order to view the Summary Report correctly.
