Part Properties



Part_Properties_Icon

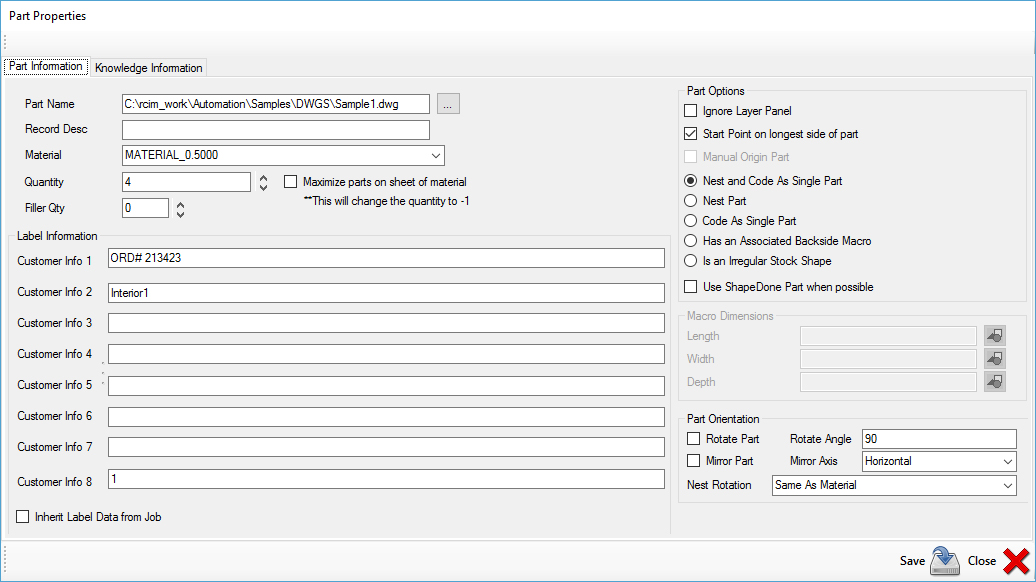

This selection opens the part properties window.



For more information on the Part Properties button, click here.



Part_Properties_Bsc

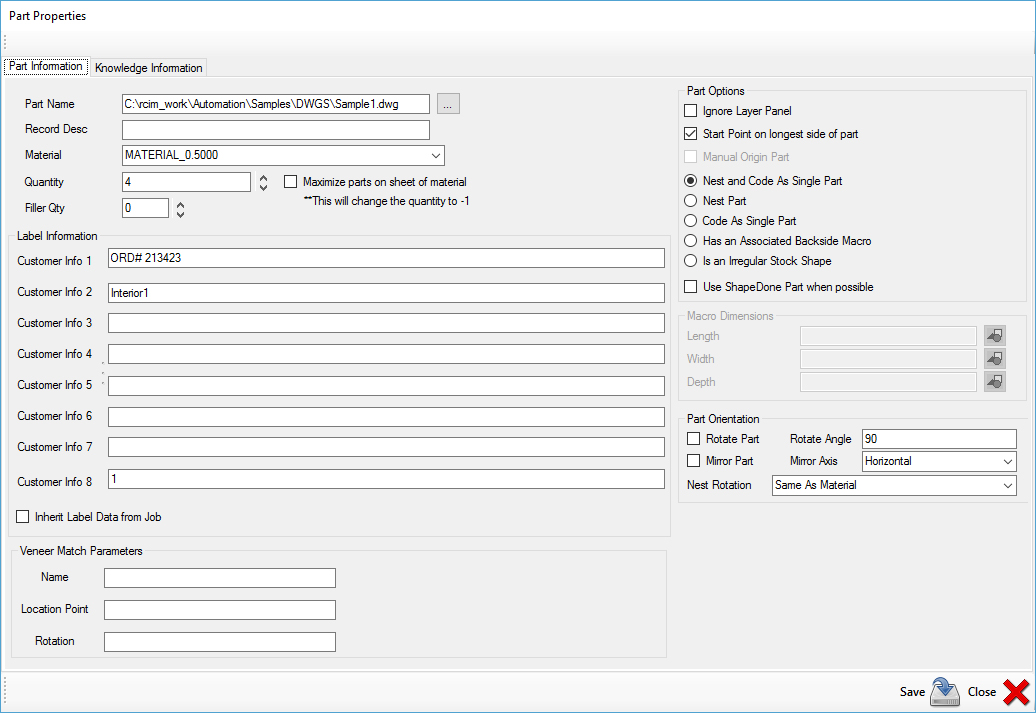

For users that have the Advanced Nesting Option, you will also see the Veneer Matching Parameters:



Part_Properties_Adv



This will show the current properties of the currently selected part in a job.  If no part is selected, the first part in the job is shown.
