Vertical Finishing at Angle Minus 45

Using the MCADTPC.dwg file, select the XNURBS_CUT-ZIGZAG_XZ Cycle.

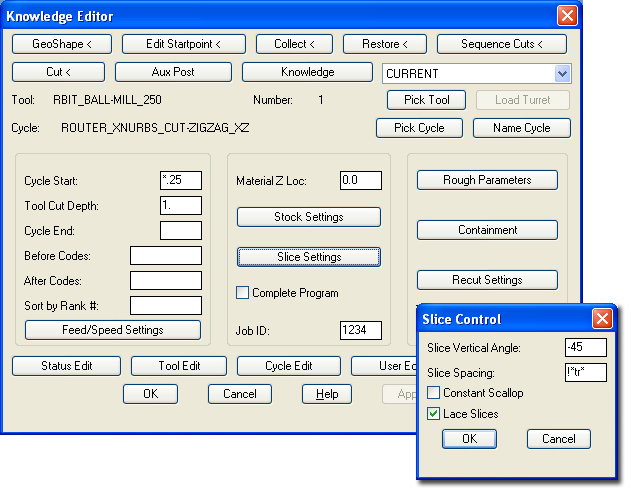

Select Slice Settings to be sure the Slice Vertical Angle is set to -45.

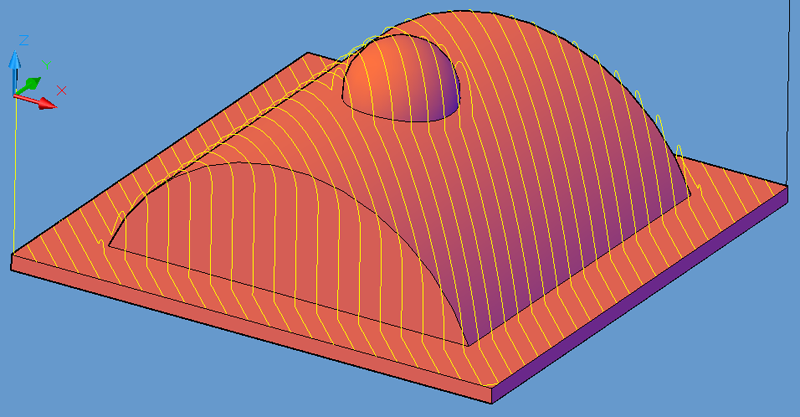

These settings should produce a tool path like this:

The only difference between this tool path and Vertical Finishing at Angle 0.0 is the setting for Slice Vertical Angle.  Setting this to a value other than 0 produces slices on the specified angle.
