Using the Sample Drawing

Top  Previous  Next

There is a drawing name FastDrillVerticalBoringSample1.dwg which contains knowledge for each of the cutting methods shown above.  You can use Retrieve Knowledge to look at or export these sample knowledges into your own drawings.



You can download the drawing here.

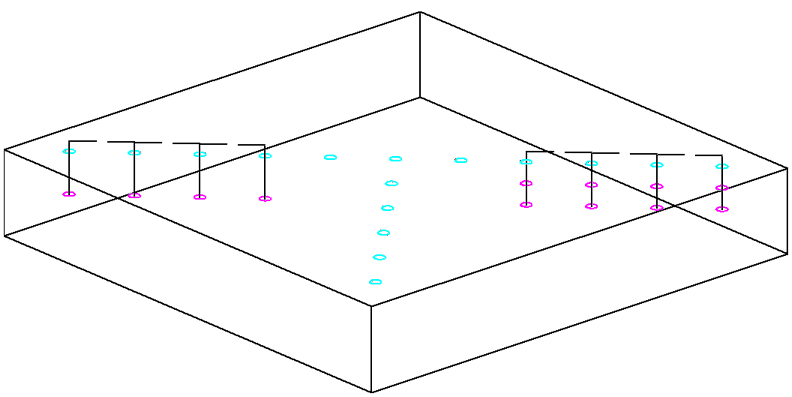

The sample has several holes drawn on it and you can cut any or all of them with the sample knowledges to get a feel for the way the cycles work.  Geoshape as many holes as you want and select from the two knowledges included to test the drill cycles.



FastDrillVerticalBoringSample1c_Model

The sample knowledges contained in the drawing are:

FastDrillOnePass

FastDrillTwoPass
