This field defines the lead-Out block name. There are several available, but only some cycles will respond to the change of the Lead-Out edits.
The options selected from the Options Box by default are:
MULTILO
Multilo is the default lead type for some cycles where there are multiple depth per pass, and Router-CIM must figure out how to move each cut down (usually ramping) between passes.
This is typically not a user selectable option.
n
None. There will be no lead out move generated.
LNTLO

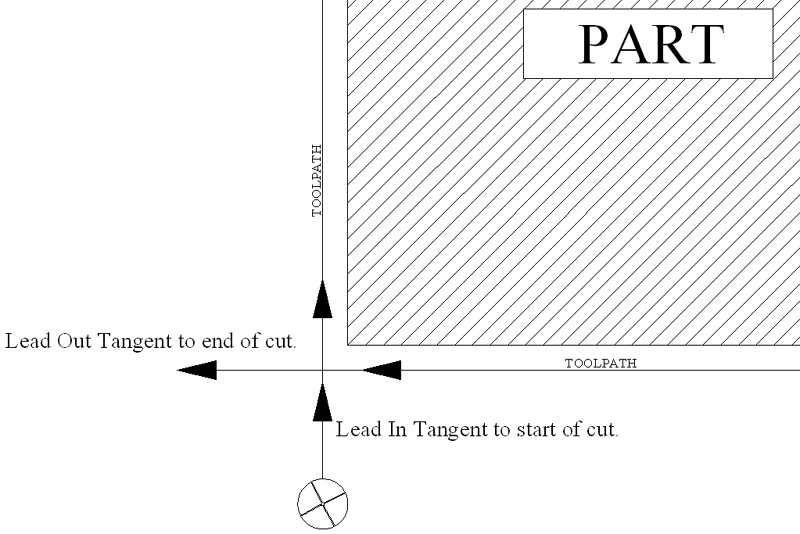

Line Tangent Lead Out. This generates a move tangent to the end of the cut.
A90LO

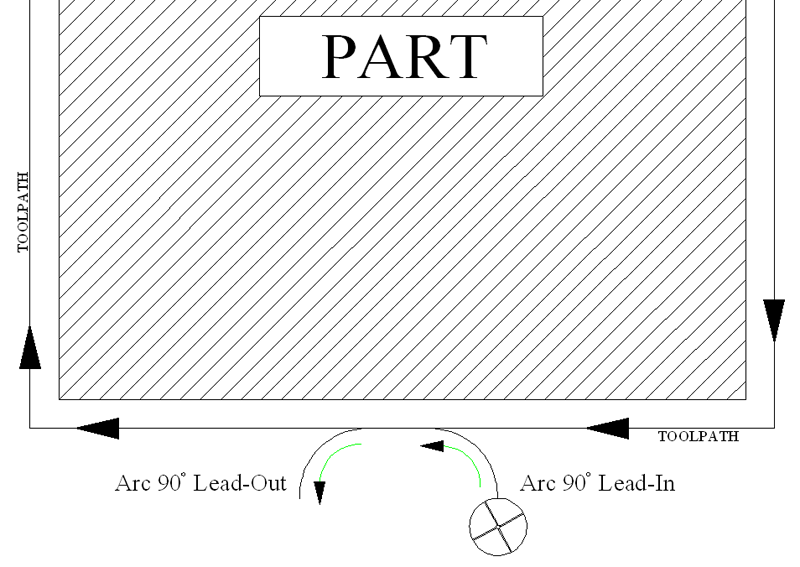

Arc 90° Lead Out. Generates an arc of 90°, starting tangent to the end of the cut.
LNNLO

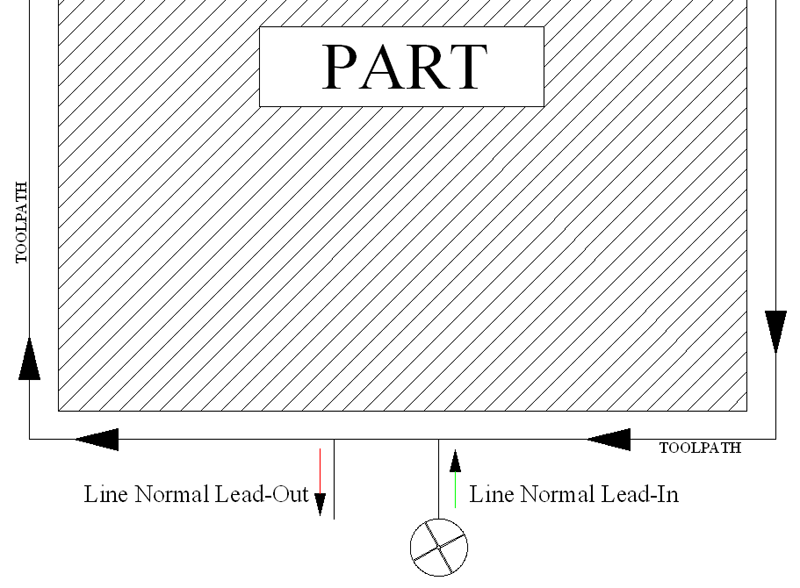

Line Normal Lead Out. The Line Normal is perpendicular to the end of the cut.
A180LO

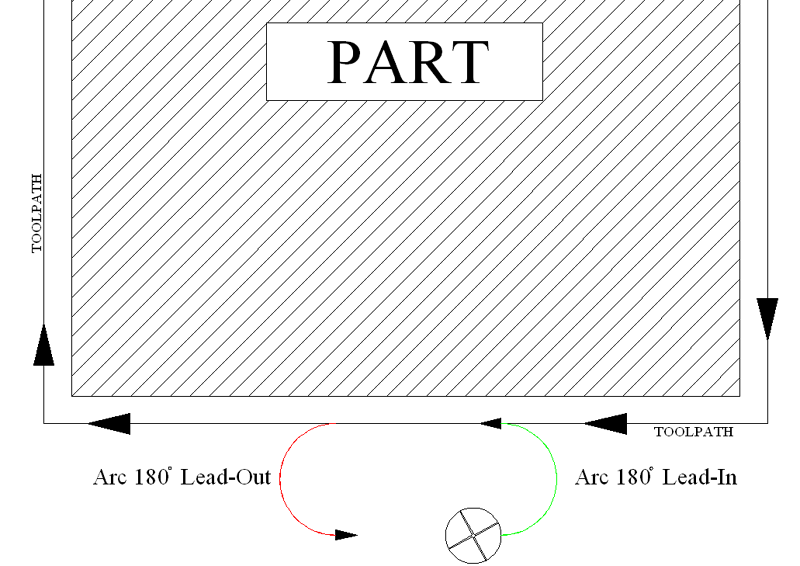

Arc 180° Lead Out. An arc will be generated with an angle of 180°, starting tangent to the end of the cut.
LA90LO

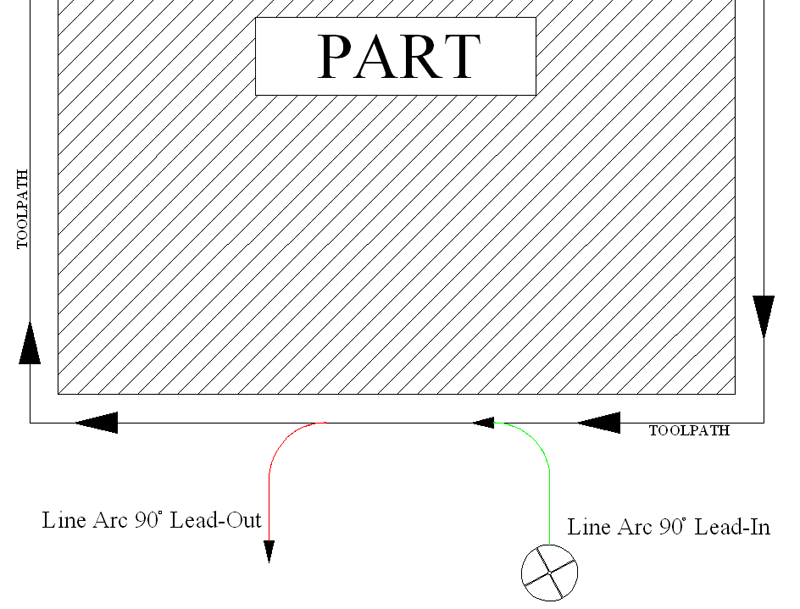

Line and Arc 90° Lead Out. There will be a short line, then a 90° arc, starting tangent to the end of the cut.
LN-45LO

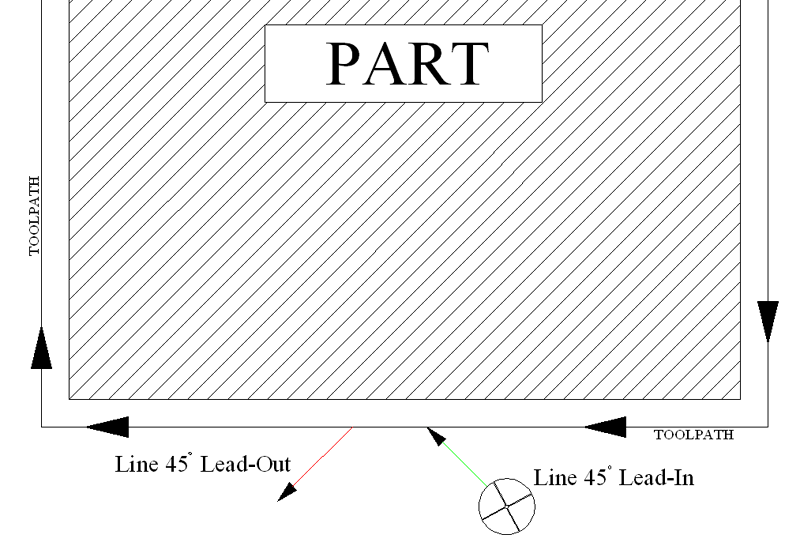

Line 45° Lead Out. This method generates a line at a 45° angle to the end of the cut.
lo
This is a Router-CIM macro that will generate a line lead out, in various configurations depending on the cut settings. This is not a user selectable option.
Creating Additional Leads
Additional Leads can be made in the /Router-CIM/Ncdwgs/(Knowledge Drawing based on the name of your postprocessor i.e. Mach1s, Mach2s, etc.) drawing by drawing a polyline on layer NC_LEADS beginning at 0,0 for a lead-out. Make a block from the polyline with a 0,0 insertion point.
After the block is created you should erase the lead from the drawing and change the current layer back to Layer 0.
Save the drawing back to your /Router-CIM/Ncdwgs directory.
The next time you want to use the new lead, choose the Plunge Outside line leads cycle and enter the block name of the lead-out you chose to create, in the appropriate field in the Control Panel.
