Layer Control

Top  Previous  Next

Be aware of the Layering scheme that Router-CIM creates when tool paths are created.

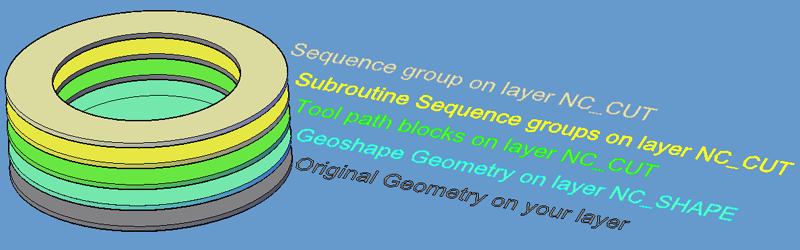

The items on the screen will be on top of each other in this order:



1. Your original geometry on whatever layer you built it.

2. Defined CCW Polylines from the geoshape command are on layer NC_SHAPE.

3. Tool Path blocks created from the CUT command are on layers starting with NC_Cut.

4. The Sequence List for each tool are on layers starting with NC_Cut, if using Sub Programs.

5. The Sequence List for all tool paths on layers starting with NC_Cut.



RcimStatus_018
