There are 4 possible drill blocks in the standard configurations. Each of these will be shown with their drill numbers.

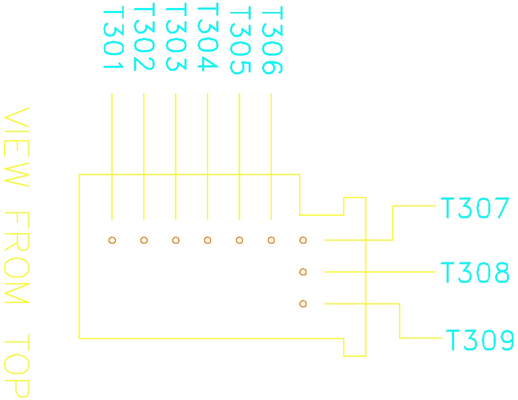

9 Spindle HSD Drill Block:
The drills would be numbered like this on an 9 spindle drill:
T-Code |
Binary Number |
Work Coordinate |
Height Comp Number |
Horizontal Length Comp Number |
Comment |
T301 |
T1 M91 |
G54P1 |
H41 |
- |
Vertical Drill |
T302 |
T2 M91 |
G54P2 |
H42 |
- |
Vertical Drill |
T303 |
T4 M91 |
G54P3 |
H43 |
- |
Vertical Drill |
T304 |
T8 M91 |
G54P4 |
H44 |
- |
Vertical Drill |
T305 |
T16 M91 |
G54P5 |
H45 |
- |
Vertical Drill |
T306 |
T32 M91 |
G54P6 |
H46 |
- |
Vertical Drill |
T307 |
T64 M91 |
G54P7 |
H47 |
- |
Vertical Drill |
T308 |
T128 M91 |
G54P8 |
H48 |
- |
Vertical Drill |
T309 |
T256 M91 |
G54P9 |
H49 |
- |
Vertical Drill |

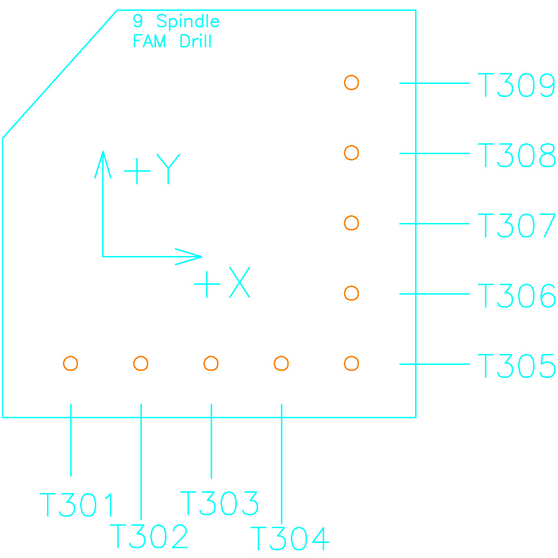

9 Spindle FAM Drill Block:
The drills would be numbered like this on an 9 spindle drill:
T-Code |
Binary Number |
Work Coordinate |
Height Comp Number |
Horizontal Length Comp Number |
Comment |
T301 |
T1 M91 |
G54P1 |
H41 |
- |
Vertical Drill |
T302 |
T2 M91 |
G54P2 |
H42 |
- |
Vertical Drill |
T303 |
T4 M91 |
G54P3 |
H43 |
- |
Vertical Drill |
T304 |
T8 M91 |
G54P4 |
H44 |
- |
Vertical Drill |
T305 |
T16 M91 |
G54P5 |
H45 |
- |
Vertical Drill |
T306 |
T32 M91 |
G54P6 |
H46 |
- |
Vertical Drill |
T307 |
T64 M91 |
G54P7 |
H47 |
- |
Vertical Drill |
T308 |
T128 M91 |
G54P8 |
H48 |
- |
Vertical Drill |
T309 |
T256 M91 |
G54P9 |
H49 |
- |
Vertical Drill |

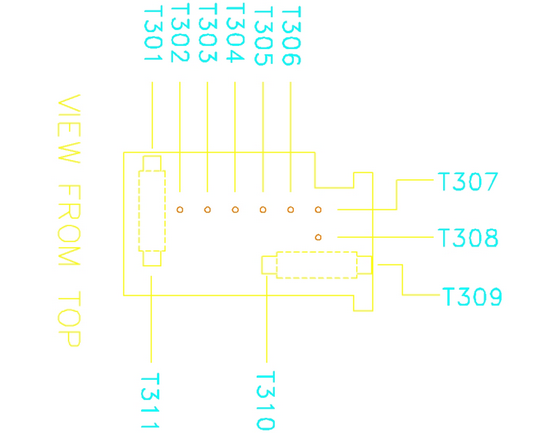

11 Spindle Drill Block:
The drills would be numbered like this on an 11 spindle drill:
T-Code |
Binary Number |
Work Coordinate |
Height Comp Number |
Horizontal Length Comp Number |
Comment |
T301 |
T1 M91 |
G54P1 |
H41 |
H52 |
Y+ Direction |
T302 |
T2 M91 |
G54P2 |
H42 |
- |
Vertical Drill |
T303 |
T4 M91 |
G54P3 |
H43 |
- |
Vertical Drill |
T304 |
T8 M91 |
G54P4 |
H44 |
- |
Vertical Drill |
T305 |
T16 M91 |
G54P5 |
H45 |
- |
Vertical Drill |
T306 |
T32 M91 |
G54P6 |
H46 |
- |
Vertical Drill |
T307 |
T64 M91 |
G54P7 |
H47 |
- |
Vertical Drill |
T308 |
T128 M91 |
G54P8 |
H48 |
- |
Vertical Drill |
T309 |
T256 M91 |
G54P9 |
H49 |
H53 |
X+ Direction |
T310 |
T256 M91 |
G54P10 |
H50 |
H54 |
X- Direction |
T311 |
T1 M91 |
G54P11 |
H51 |
H55 |
Y- Direction |

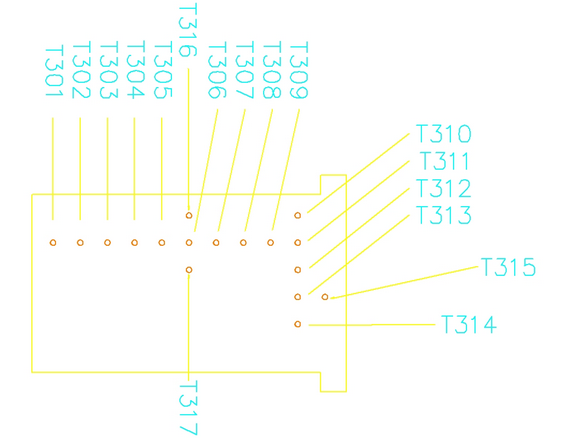

17 Spindle Drill Block:
The drills would be numbered like this on an 17 spindle drill:
T-Code |
Binary Number |
Work Coordinate |
Height Comp Number |
Horizontal Length Comp Number |
Comment |
T301 |
T1 M91 |
G54P1 |
H41 |
- |
Vertical Drill |
T302 |
T2 M91 |
G54P2 |
H42 |
- |
Vertical Drill |
T303 |
T4 M91 |
G54P3 |
H43 |
- |
Vertical Drill |
T304 |
T8 M91 |
G54P4 |
H44 |
- |
Vertical Drill |
T305 |
T16 M91 |
G54P5 |
H45 |
- |
Vertical Drill |
T306 |
T32 M91 |
G54P6 |
H46 |
- |
Vertical Drill |
T307 |
T64 M91 |
G54P7 |
H47 |
- |
Vertical Drill |
T308 |
T128 M91 |
G54P8 |
H48 |
- |
Vertical Drill |
T309 |
T256 M91 |
G54P9 |
H49 |
- |
Vertical Drill |
T310 |
T512 M91 |
G54P10 |
H50 |
- |
Vertical Drill |
T311 |
T1024 M91 |
G54P11 |
H51 |
- |
Vertical Drill |
T312 |
T2048 M91 |
G54P12 |
H52 |
- |
Vertical Drill |
T313 |
T4096 M91 |
G54P13 |
H53 |
- |
Vertical Drill |
T314 |
T8192 M91 |
G54P14 |
H54 |
- |
Vertical Drill |
T315 |
T16384 M91 |
G54P15 |
H55 |
- |
Vertical Drill |
T316 |
T32768 M91 |
G54P16 |
H56 |
- |
Vertical Drill |
T317 |
T65536 M91 |
G54P17 |
H57 |
- |
Vertical Drill |

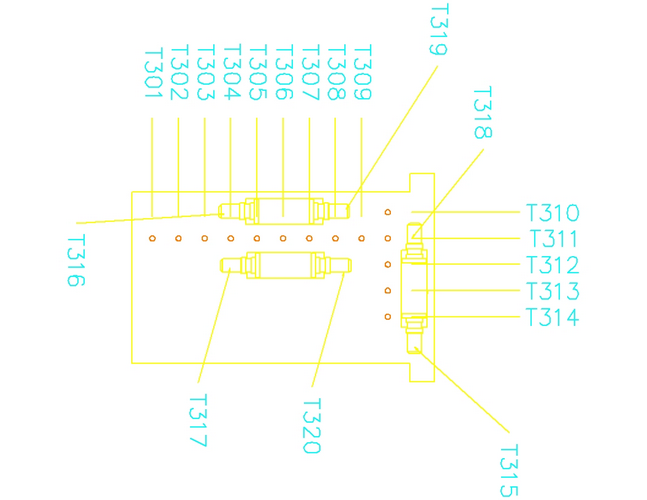

20 Spindle Drill Block:
The drills would be numbered like this on an 20 spindle drill:
T-Code |
Binary Number |
Work Coordinate |
Height Comp Number |
Horizontal Length Comp Number |
Comment |
T301 |
T1 M91 |
G54P1 |
H41 |
- |
Vertical Drill |
T302 |
T2 M91 |
G54P2 |
H42 |
- |
Vertical Drill |
T303 |
T4 M91 |
G54P3 |
H43 |
- |
Vertical Drill |
T304 |
T8 M91 |
G54P4 |
H44 |
- |
Vertical Drill |
T305 |
T16 M91 |
G54P5 |
H45 |
- |
Vertical Drill |
T306 |
T32 M91 |
G54P6 |
H46 |
- |
Vertical Drill |
T307 |
T64 M91 |
G54P7 |
H47 |
- |
Vertical Drill |
T308 |
T128 M91 |
G54P8 |
H48 |
- |
Vertical Drill |
T309 |
T256 M91 |
G54P9 |
H49 |
- |
Vertical Drill |
T310 |
T512 M91 |
G54P10 |
H50 |
- |
Vertical Drill |
T311 |
T1024 M91 |
G54P11 |
H51 |
- |
Vertical Drill |
T312 |
T2048 M91 |
G54P12 |
H52 |
- |
Vertical Drill |
T313 |
T4096 M91 |
G54P13 |
H53 |
- |
Vertical Drill |
T314 |
T8192 M91 |
G54P14 |
H54 |
- |
Vertical Drill |
T315 |
T16384 M91 |
G54P15 |
H55 |
- |
Horizontal Drill |
T316 |
T32768 M91 |
G54P16 |
H56 |
- |
Horizontal Drill |
T317 |
T65536 M91 |
G54P17 |
H57 |
- |
Horizontal Drill |
T318 |
T16384 M91 |
G54P18 |
H58 |
|
Horizontal Drill |
T319 |
T32768 M91 |
G54P19 |
H59 |
|
Horizontal Drill |
T320 |
T65536 M91 |
G54P20 |
H60 |
|
Horizontal Drill |
