The drills in the drill block can also be called in a format that allows one T-Code called for any number of drills in a pattern. This is binary drill coding. To call multiple drills at one time, simply add the binary numbers. For instance to call T302 and T303 together, you would add the binary numbers 2 + 4 and use T6.
The drills would be numbered like this on an 11 spindle drill:
T-Code |
Binary Number |
Work Coordinate |
Height Comp Number |
Horizontal Length Comp Number |
Comment |
T301 |
T1 M91 |
G54P1 |
H41 |
H52 |
Y+ Direction |
T302 |
T2 M91 |
G54P2 |
H42 |
- |
Vertical Drill |
T303 |
T4 M91 |
G54P3 |
H43 |
- |
Vertical Drill |
T304 |
T8 M91 |
G54P4 |
H44 |
- |
Vertical Drill |
T305 |
T16 M91 |
G54P5 |
H45 |
- |
Vertical Drill |
T306 |
T32 M91 |
G54P6 |
H46 |
- |
Vertical Drill |
T307 |
T64 M91 |
G54P7 |
H47 |
- |
Vertical Drill |
T308 |
T128 M91 |
G54P8 |
H48 |
- |
Vertical Drill |
T309 |
T256 M91 |
G54P9 |
H49 |
H53 |
X+ Direction |
T310 |
T256 M91 |
G54P10 |
H50 |
H54 |
X- Direction |
T311 |
T1 M91 |
G54P11 |
H51 |
H55 |
Y- Direction |

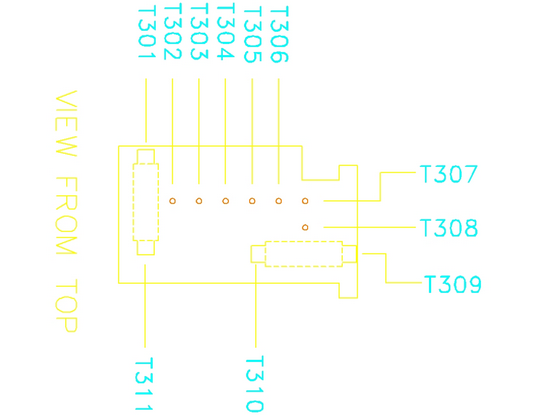

GANG DRILL LAYOUT (11 DRILL EXAMPLE)
SAMPLE CODE WITH BINARY DRILLS
%
:1234(CODESAMPLE1)
N1 G0 G17 G20 G28 G40 G80 G91 Z0 M5
N2 G90
N3 G52 X0 Y0 Z0
N4 G8 P1
N5 M8
N6(DRILL BLOCK)
N7 G28 G91 Z0 M5
N8 G90
N9 T64 M91
N10 M3 S5000
N11 G0 G54 P7 X32.6931 Y22.385
N12 G0 G43 H47 Z1. T2005 M06
N13 G1 Z.375 F100.
N14 G0 Z1.
N15 G0 X28.769
N16 G1 Z.375 F100.
N17 G0 Z1.
N18 G0 X26.3007
N19 G1 Z.375 F100.
N20 G0 Z1.
N21 G0 X32.6931 Y7.7522
N22 G1 Z.375 F100.
N23 G0 Z1.
N24 G0 X28.769
N25 G1 Z.375 F100.
N26 G0 Z1.
N27 G0 X26.3007
N28 G1 Z.375 F100.
N29 G0 Z1.
N30(DRILL BLOCK)
N31 T62 M91
N32 M3
N33 G0 G54 P2 X15.8186 Y5.4264
N34 G43 H42 Z1.
N35 G1 Z.375 F100.
N36 G0 Z1.
N37(DRILL BLOCK)
N38 T16 M91
N39 M3
N40 G0 G54 P5 X14.5588 Y5.4264
N41 G43 H45 Z1.
N42 G1 Z.375 F100.
N43 G0 Z1.
N44(DRILL BLOCK)
N45 T62 M91
N46 M3
N47 G0 G54 P2 X8.2598 Y5.4264
N48 G43 H42 Z1.
N49 G1 Z.375 F100.
N50 G0 Z1.
N51(DRILL BLOCK)
N52 T16 M91
N53 M3
N54 G0 G54 P5 X7. Y5.4264
N55 G43 H45 Z1.
N56 G1 Z.375 F100.
N57 G0 Z1.
N58(DRILL BLOCK)
N59 T24 M91
N60 M3
N61 G0 G54 P4 X7. Y25.
N62 G43 H44 Z1.
N63 G1 Z.375 F100.
N64 G0 Z1.
N65(DRILL BLOCK)
N66 T62 M91
N67 M3
N68 G0 G54 P2 X9.5196 Y25.
N69 G43 H42 Z1.
N70 G1 Z.375 F100.
N71 G0 Z1.
N72 G0 X15.8186
N73 G1 Z.375 F100.
N74 G0 Z1.
N75(ROUTER-BIT .250 DIA. ON DADOES)
N76 G28 G91 Z0 M5
N77 G90 T2005 M6
N78 T102
N79 M3 S18000
N80 G0 G17 G55 X1.3875 Y1.
N81 G0 G43 H5 Z1.
N82 G41 D5 G1 X1.25 F325.
N83 X0. Z.375
N84 X36. F650.
N85 X34.75 Z1.
N86 G40 G0 X34.6125
N87 X4. Y26.6125
N88 G41 D5 G1 Y26.75 F325.
N89 Y28. Z.375
N90 Y0. F650.
N91 Y1.25 Z1.
N92 G40 G0 Y1.3875
N93(ROUTER-BIT .5 DIA. PROFILE CUT)
N94 G28 G91 Z0 M5
N95 G90 T2001 M6
N96 T102
N97 M3 S18000
N98 G0 G17 G55 X17.3881 Y28.249
N99 G0 G43 H1 Z1.
N100 G41 D1 G1 X17.6631 F325.
N101 X19.6631 Z0.
N102 X36.249 F650.
N103 Y-.249
N104 X-.249
N105 Y24.249
N106 X3.0771
N107 Y28.249
N108 X19.6631
N109 X20.1631 F650.
N110 X22.1631 Z1.
N111 G40 G0 X22.4381
N112 G28 G91 Z0 M5
N113 G28 G91 X0 M9
N114 G90
N115 G52 X0 Y0 Z0
N116 G8 P0
N117 M30
%
