Acc-N-Dec

Top  Previous  Next

RcimStatus_Status_Misc



Checking this box enables the Acc-n-Dec feature at the cut level.  Acc-n-Dec will output feedrate changes in the code depending on the geometry the tool is cutting and the maximum feedrate programmed.

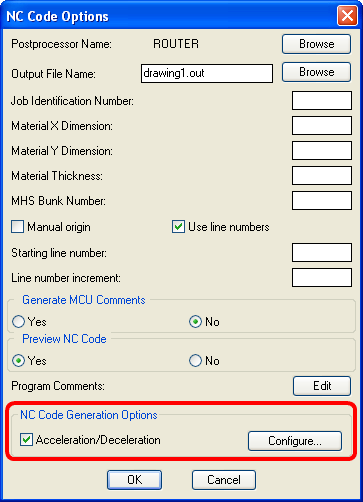

Check this box to apply Acc-n-Dec feedrate changes to the next tool path you make.  To get the feedrate changes in the code, you would also check the Acc-n-Dec button in the Sequence Options.



RcimStatus_014



If you wish to disable Acc-n-Dec later, de-select Acc-n-Dec in the Sequencer to skip insertion of feedrate changes for all tool paths in the program.





In the code example below, each of the feedrate changes have been highlighted.



%

: 1 (ACCDEC SAMPLE 1)

N1 G00 G17 G20 G28 G40 G80 G91 Z0 M5

N2 G90

N3 G52 X0 Y0 Z0

N4 G08 P1

N5 M08

N6 (ROUTER-BIT .5 DIA.)

N7 G28 G91 Z0 M05

N8 G90 T2001 M06

N9 T102

N10 M03 S18000

N11 G00 G17 G55 X43.9728 Y13.2444

N12 G00 G43 H1 Z.25

N13 G41 D01 G01 Y13.2559 F350.

N14 Y13.5078 F500.

N15 Y13.5194 F350.

N16 Z.2385

N17 Z-.4885 F500.

N18 Z-.5 F350.

N19 G03 X43.4728 Y14.0194 I-.5 F47.5

N20 G01 X43.4014 F71.16

N21 X25.5516 F1000.

N22 X25.4801 F71.16

N23 G02 X24.7311 Y14.7684 J.749

N24 G01 Y37.9181 F1000.

N25 Y37.9895 F71.16

N26 G02 X25.4801 Y38.7385 I.749

N27 G01 X62.2889 F1000.

N28 X62.3604 F71.16

N29 G02 X63.1094 Y37.9895 J-.749

N30 G01 Y14.8398 F1000.

N31 Y14.7684 F71.16

N32 G02 X62.3604 Y14.0194 I-.749

N33 G01 X43.4728 F1000.

N34 X42.9728

N35 G03 X42.4728 Y13.5194 J-.5 F47.5

N36 G00 Z.25

N37 G40 G00 Y13.2444

N38 G28 G91 Z0 M5

N39 G28 G91 X0 M09

N40 G90

N41 G52 X0 Y0 Z0

N42 G08 P0

N43 M30

%
