Folder Tree



The folder tree is where your jobs are stored.  Each job can be in the main folder or they can be stored in sub folders.  The preference for how you store jobs is really up to you.



Folder_Tree

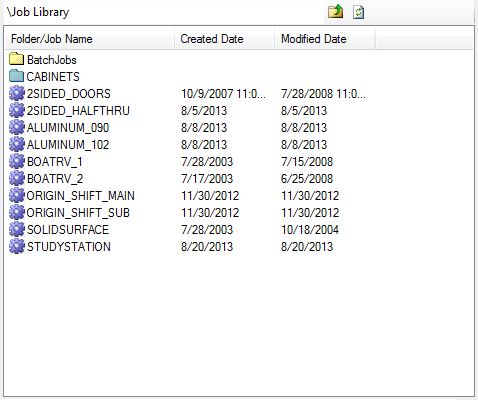

In this example, there is a folder called CABINETS.



Folder_Treer2



Selecting the CABINETS folder opens the tree further to show the jobs that have been located there.



Folder_TreeR3



There could have been even more folders in this folder if the jobs needed to be separated further.
