Tool Palette



You may use an AutoCAD Tool Palette to show a list of available parts.  The steps involved in using a tool palette are:



1.In the Insert Ribbon in AutoCAD select the Design Center

2.Select the drawing that was previously exported by Solid-CIM 3D and saved.

3.Right-Click on the drawing name and select Create Tool Palette.

4.A Tool Palette will appear

5.Close the Design Center



ToolPalette1

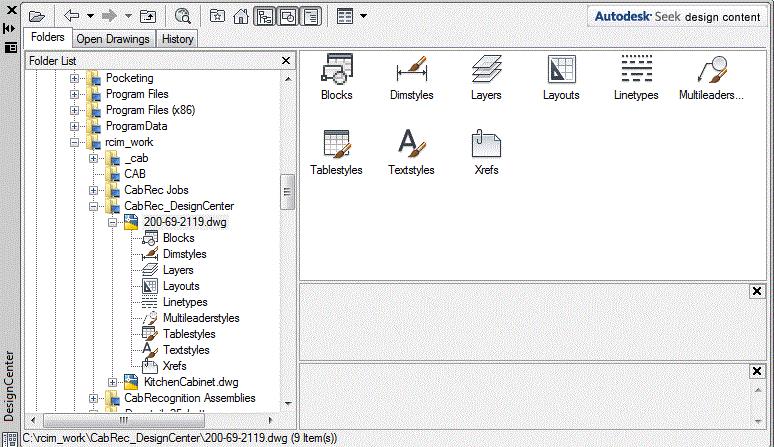

The Design Center with the desired Solid-CIM 3D drawing.

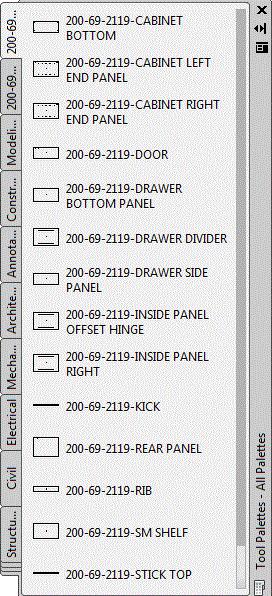

The tool palette created will look like this:



ToolPalette2



Each item in the tool palette is a part name with an icon that represents a profile of the part assigned to the part name.
