Pocket Bores



Solid-CIM 3D has the ability to pick up Pocket Bore features as long as they are defined as shown in this section.

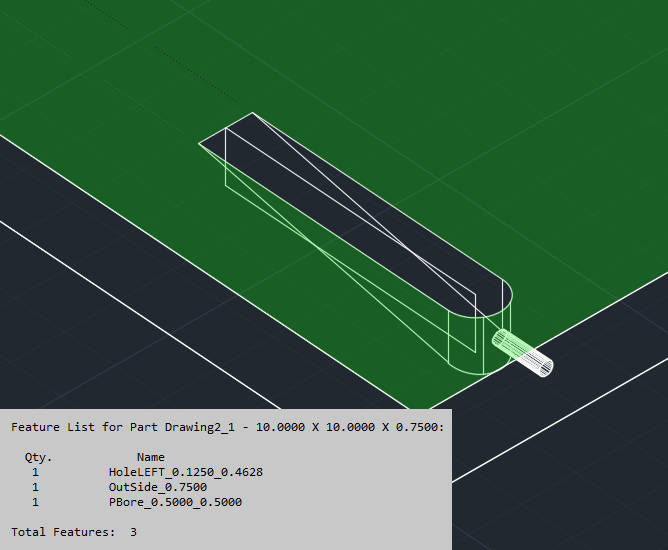

If Solid-CIM recognizes the feature as a Pocket Bore, it will be placed on a layer starting with PBore and follow the convention, PBore_Width_Depth.
