.SUM File Format

The .SUM file is one of the three files created upon every successful nesting of a task.

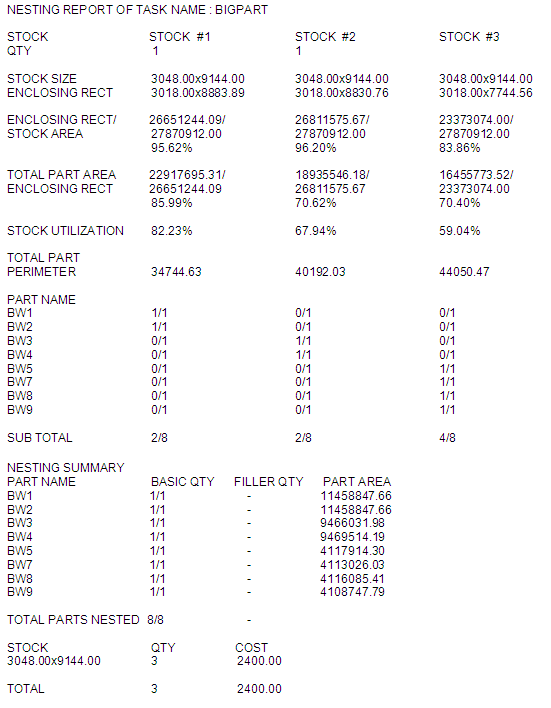

A .SUM file will contain almost the same information as the Nesting Summary report when displayed on the drawing. It will display the Part Area of each parts whereas the Summary report in AutoCAD will not. The format is listed below:



SUMReport
