You may use an AutoCAD Tool Palette to show a list of available parts. The steps involved in using a tool palette are:
| 1. | In the Insert Ribbon in AutoCAD select the Design Center |
| 2. | Select the drawing that was previously exported by Solid-CIM 3D and saved. |
| 3. | Right-Click on the drawing name and select Create Tool Palette. |
| 4. | A Tool Palette will appear |
| 5. | Close the Design Center |

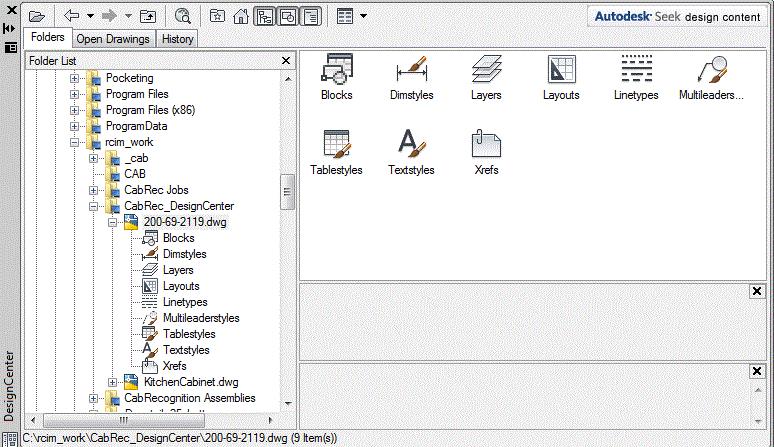

The Design Center with the desired Solid-CIM 3D drawing.

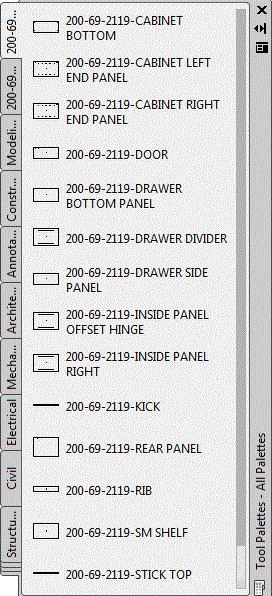

The tool palette created will look like this:
Each item in the tool palette is a part name with an icon that represents a profile of the part assigned to the part name.
