Settings (SCIMSET)



Solid-CIM 3D has several default settings.



Solid-CIM Settings from AutoCAD:

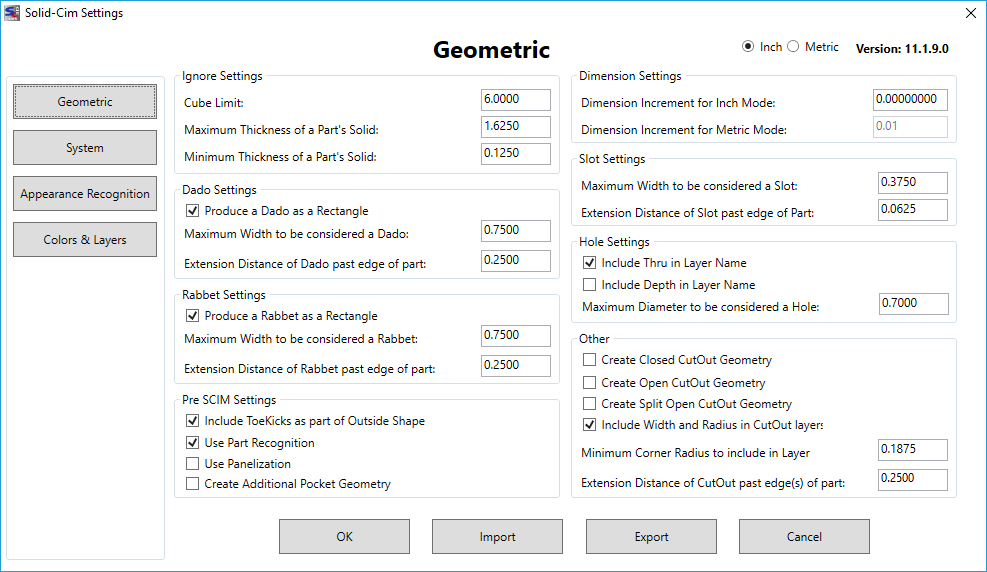

These settings can be defined by using the command SCIMSET at the command line or selecting one of the following icons:



Solid-CIM 3D Toolbar Icon:



Solid-CIM 3D Ribbon:



All settings are saved with the program and are available in all subsequence uses of Solid-CIM 3D. You can Export your settings to a file, and import previously saved settings.



Each of these settings is dependent upon AutoCAD’s MEASUREMENT command.



If MEASUREMENT = 0 the system processes dimension setting in Inch.

If MEASUREMENT = 1 the system processes dimension settings in Metric (millimeters).



When accessing the Solid-CIM Settings (SCIMSET) from inside of AutoCAD the measurement field will be locked to Inch or Metric depending on what the MEASUREMENT variable is set to.





Solid-CIM Settings from Desktop:



The Solid-CIM Settings (SCIMSET) can also be accessed from the Desktop so changes can be made without needing to open AutoCAD.



On the Desktop of your computer there will be a Solid-CIM Settings icon as seen below







Clicking on the Desktop shortcut will bring up Solid-CIM Settings as if it was being accessed from AutoCAD.



When accessing the Solid-CIM Settings (SCIMSET) from the Desktop the measurement field will not be locked to Inch or Metric so either can be manipulated.
