Dado / Saw

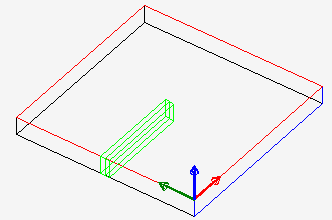

The Dado/Saw Operation consist of a polyline that starts at XStart, YStart and travels to XEnd, YEnd. Optional parameter definitions are:

Layer Name Defined:
Dado: Layer name will begin with DADO

Saw: Layer name will begin with SAW



•XStart, YStart, XEnd, YEnd - start at the X,Y start and end at the X,Y end parameters

•XStart, YStart, Angle, Length - start at the X,Y start and end at a point defined by the Angle and Length parameters

Width is the width of the Dado. Depth is the depth of the Dado. The width is visual in the AutoCAD drawing. The polyline would need a layer override in order to make sure the layer name describes the width of the feature in order to assign the correct cutting knowledge in Router-CIM Automation Suite with the DOIT file.

Validation Process

Width and Depth must have values.

X,Y Start must have values.

X,Y End OR Angle, Length must have values.

Condition and Record Data

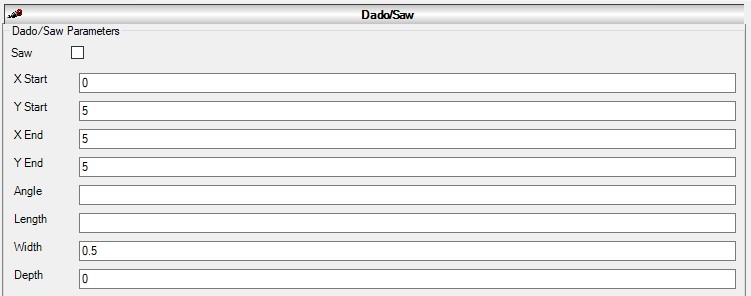

Reference the Editor Interface for details.
