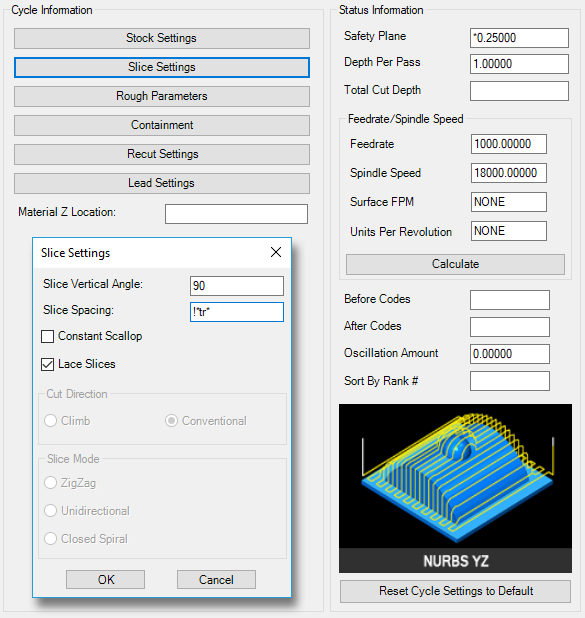

Select Slice Settings to be sure the Slice Vertical Angle is set to 90.0.
Press the 'Cut' Button.

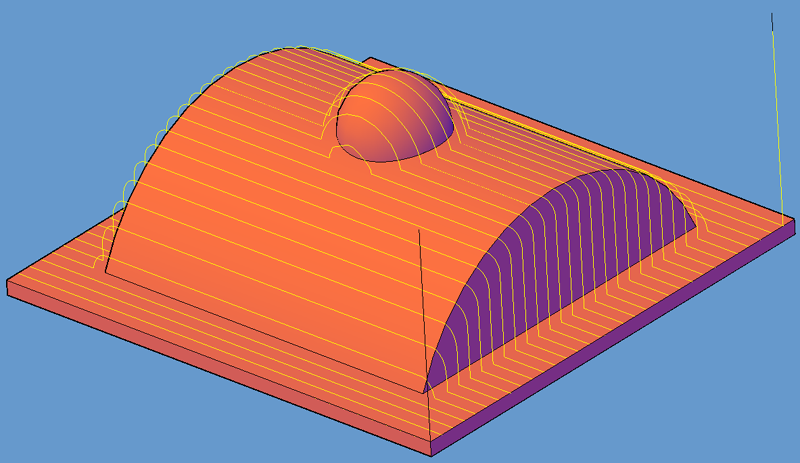

The output of these settings should produce a tool path like this:
The settings used are finishing settings. There is no Stock Allowance used. There are no roughing passes, lead-in, or lead-out. Also Containment and Recutting are turned off. Each of those setting will be explained, just a little bit later in this document.
The main purpose here is that you understand how the YZ slice creates a basic tool path in the Y and Z direction with step over in X.
