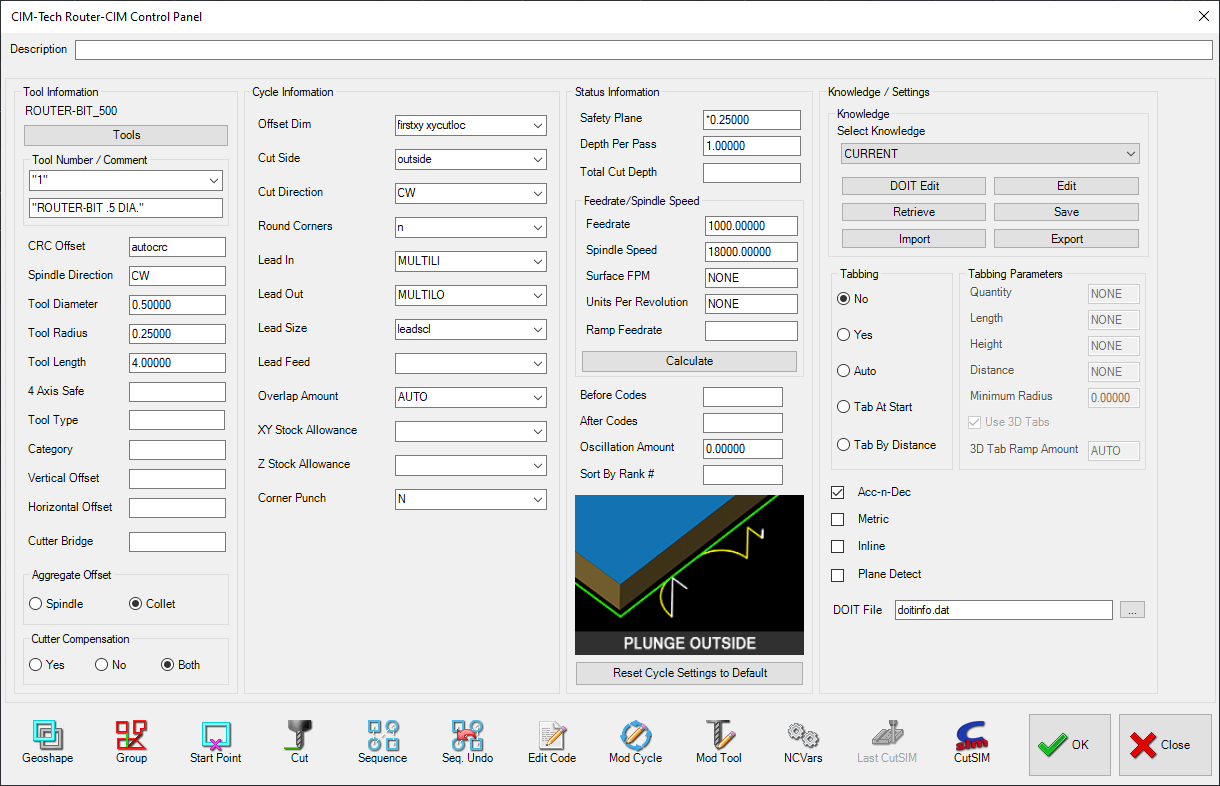

Router-CIM Control Panel



The Router-CIM Control Panel is where you define a cutting knowledge. A cutting knowledge is needed in order to apply a cut path. A typical knowledge will define the tool, the cutting cycle and the status information. The following sections will guide you on how to create, use and save a cutting knowledge.

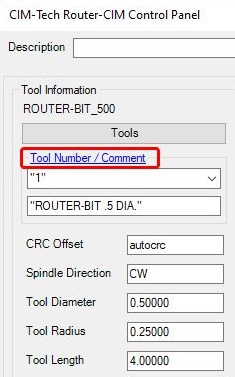

Each heading in the Router-CIM Control Panel links to either the corresponding topic or the cutting cycle definition in the Router-CIM help manual.



Simply double-click on the heading next to the desired field and the Router-CIM help manual will open to that topic.
