Misc. Utilities

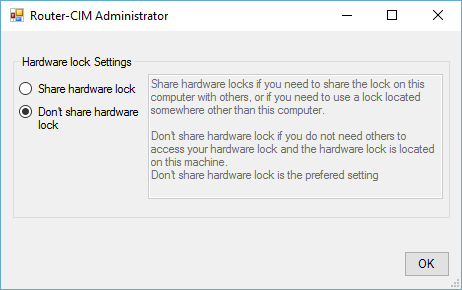

The Misc. Utilities Function will allow you to set the following item:

•Shared Hardware Locks or Don't share hardware lock.



Sharing the Router-CIM hardware lock will allow you to store the Router-CIM hardware lock on a server or a different computer.



Note: This option applies to the Router-CIM hardware lock and does not apply to the Nesting lock if the option was purchased.

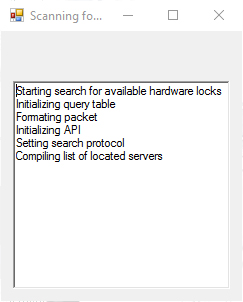

If the 'Share hardware lock' is selected, when you start Router-CIM or a component that requires the Router-CIM hardware lock, you will see this dialog box letting you know that it is searching for the lock:





If it does not find the Router-CIM hardware lock or the lock is currently in use, it will notify you.
