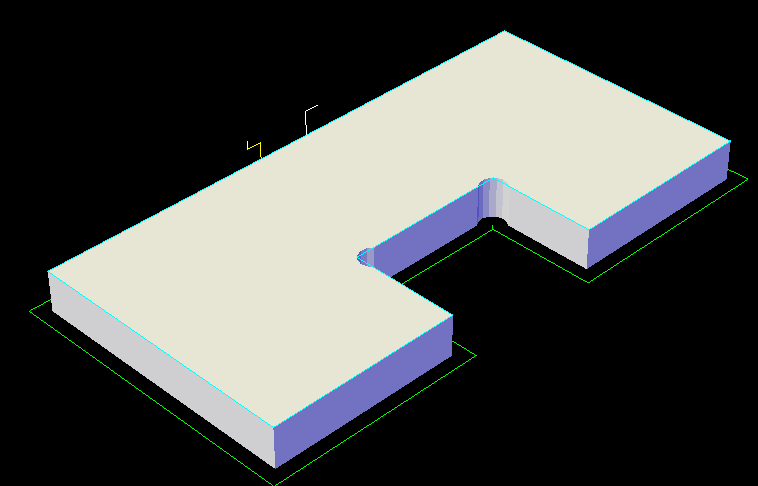

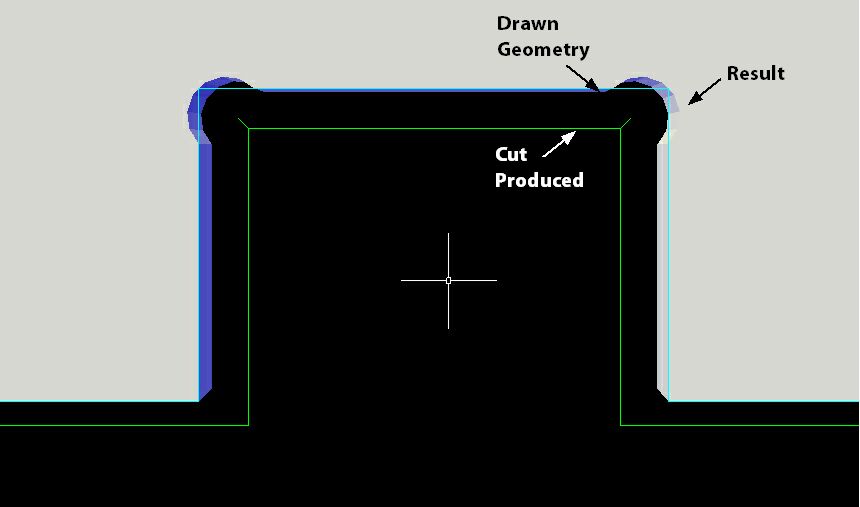

The Cornerpunch feature will find any interior angle (less then 180 degrees) and extend the cut path into the angle by required amount based on the tool size in order for a piece to fit flush within the angle without having to draw the geometry.
Acceptable options are N and Y.
This feature will work on OUTSIDE and INSIDE single pass profile cutting cycles when set to Y.
Note: The Cornerpunch feature only works with Cutter Compensation set to NO or BOTH.
