Multi-Pass-Inside

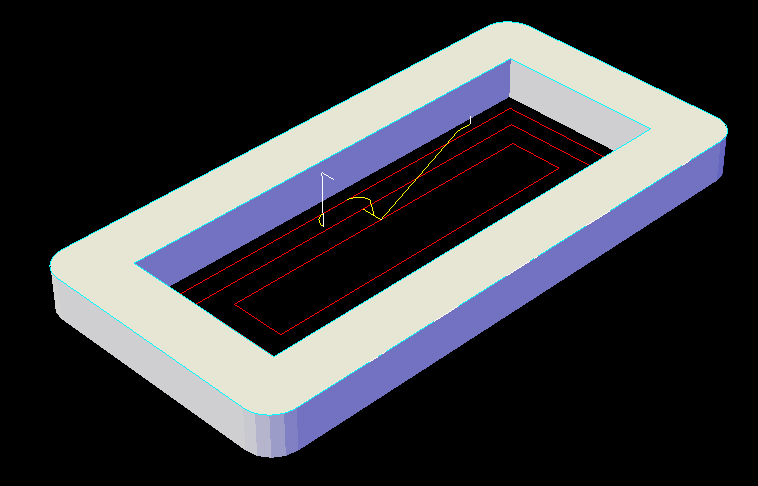

One of the main differences between the Multi-Pass Inside and Multi-Pass Outside is that the Inside cycle will make a contour following ramp-in for the first pass.  This means that this cycle can be used to remove material from an area inside a shape without a rougher tool having to remove any material first.





This cycle will only offset shapes that can be offset in AutoCAD, and if the AutoCAD offset command fails, so will this cutting cycle.  There is no provision for leaving 'islands' or separate areas that are uncut in the shape.  This is not a pocketing cycle.  There are some cut properties unique to this cycle, each of them is explained below.

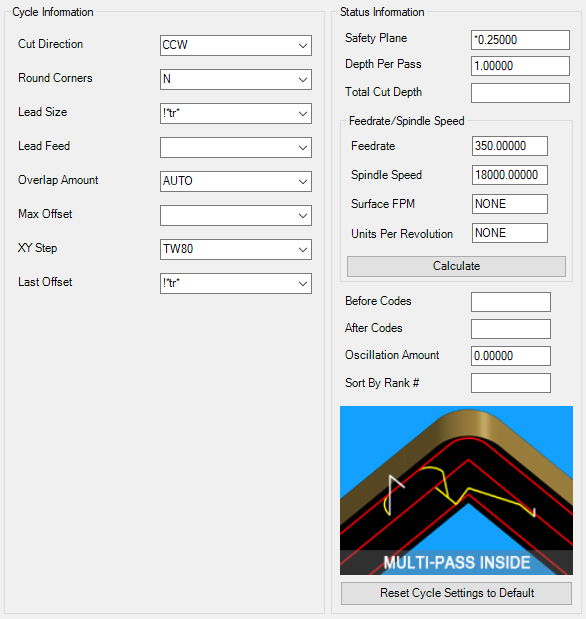

The following parameters effect the toolpath creation:



Cut Direction

The direction of the cut can only be clockwise (CW) or counter-clockwise (CCW).  This even applies to open shapes where this direction really has no meaningful relationship to the geometry selected.  Any closed shapes should have the direction set accordingly and any open shapes should be set to CCW as all shapes in AutoCAD and Router-CIM are CCW by default.



See the Cut Direction section for more information.



Round Corners

If set to Yes, this option will round sharp corners with a radius of the value stored in the task *cutfil*. The default is 0.01 radius. This option will insert a fillet in all corners, so if you have an inside cut you will most likely cause an error when the tool tries to fit into that radius. If you have inside and outside cuts on the same shape and need to fillet the corners, use the AutoCAD Fillet command, then Geoshape and Cut the shape.



See the Round Corners section for more information.



Lead Size

Use Lead Size to change the length of the leads. This field will affect both lead-in and lead-out if you put just one number in this field. You can put two numbers in this field, separated by a space, and the first number will affect the lead-in and the second will affect the lead out.



See the Lead-Size section for more information.



Lead Feed

This sets lead-in and lead-out feed rates. The default is 0.5, Router-CIM's standard 50% feedrate for lead-in and lead-out.  Whatever number you set this variable to is a percentage of max feedrate set in the Control Panel. Setting the number to a value greater than 1.0 will give you an exact feedrate.



See the Lead Feed section for more information.



Overlap Amt

Overlap is the movement of the cutter past the starting point of the cut.  By default the Overlap amount is equal to the diameter of the tool. You are able to specify a larger or smaller amount for this by placing a value in this field. For instance, if you are using a 0.5" router bit, the Overlap distance is 0.5". If you put 1.0" in the Overlap Amt. field then the Overlap will be 1.0". This is typically done to reduce any witness mark in the material left by the tool on the lead-in maneuver.



See the Overlap Amt section for more information.



Max Offset

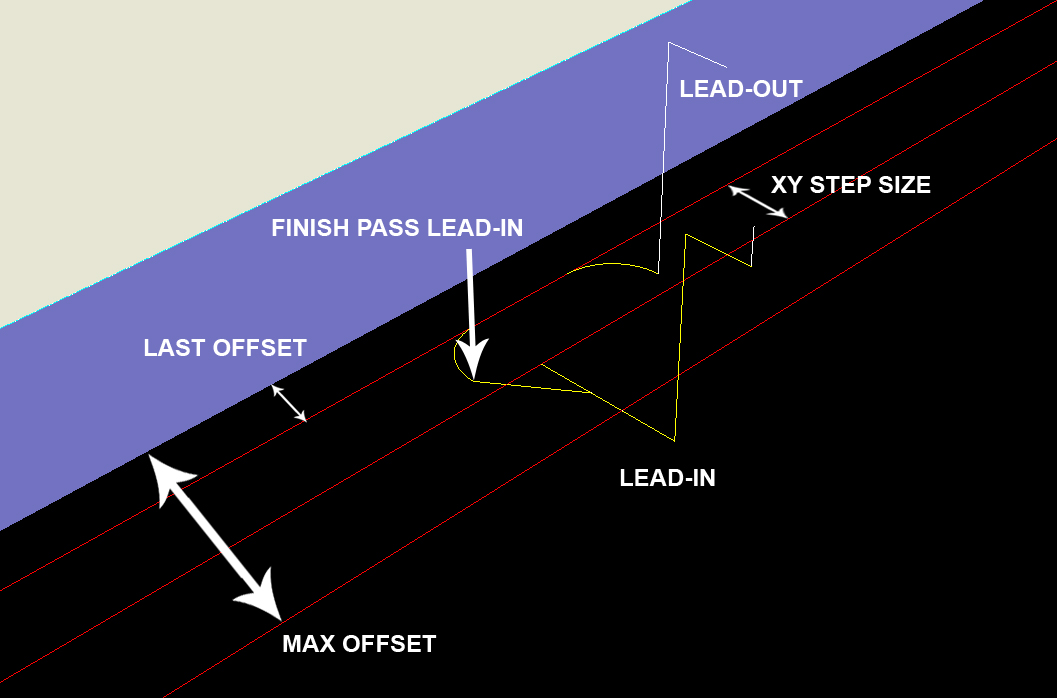

Max Offset is the distance from the start point to the start of the first pass on the cut.  If the cut cycle is Multi-Pass Inside, then the Max Offset will be to the inside of the shape by the specified amount.  If the cycle is Multi-Pass Outside, then the Max Offset will be from the start point to the outside of the shape by the Max Offset amount.  This is only the distance for the first cut.  All subsequent cuts will be determined by either XY Step or Last Offset.



XY Step Size

The XY Step is the distance between each tool path from the first to the last (excluding the finish pass) on the Multi-Pass Inside and Multi-Pass Outside cycles.



You can specify the distance as a numeric value, or you can make a task to calculate a step over amount and place the task name in the XY Step field. An example of a task is TW80, which looks at the tool diameter field and then places an amount equal to 80% of that value in this location.



Note: Unless you have created a custom task, TW80 is the only acceptable task call. The only other option would be to use a numeric value.



Last Offset

The Last Offset is the distance from the finish pass to the edge of the shape being cut.  This can be any numeric value, but if it exceeds the XY Step value, the cutter will not contact the part on the finish pass.  Typically this is set to the radius of the tool in a rough-cut, finish-cut scenario.  You can leave some material on the part if you want to clean up the part with a finish cutter.



Additional notes for Multi-Pass Inside:

If you are using this cycle to remove all of the material from the inside of a shape, then there are two things to consider.

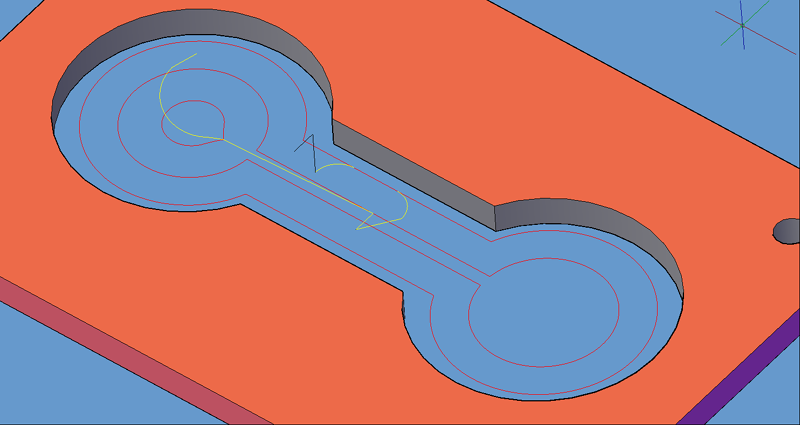

First, the shape you are cutting must be a regular shape that the AutoCAD offset command can work on to make regular offsets that will clean out the entire area.  If the AutoCAD offset command fails to be able to make enough offsets, then this cut cycle will not make the proper tool paths.  Shown below is an example of how an irregular shape could fail the offset.  For these types of shapes, the Pocketing cycles are appropriate.







Second, if you have a regular shape (rectangle, circle, etc.) and you must remove all the material inside the shape with the Multi-Pass Inside cycle, you will have to do some calculations for the Max Offset.  Since Max Offset is the offset distance from the edge of the finished shape to the start of the first cut, you will have to calculate the distance of that first offset tool path.

There are some simple formulas to use for regular shapes.



Circular Shapes

To calculate how far to make the Max offset on a circular shape, you can take the Radius of the circle, which would get you to the exact center, then subtract the tool radius to get an offset from the center (otherwise the tool would move down to the center, kind of like a drill with no other motion to make), then add how much of an overlap you want on the first pass.

So, in example to cut a 5" diameter circle, with a .5" Router-Bit, you would start with a Max offset of about 2.35.  That is using an overlap of .10 on the first pass.

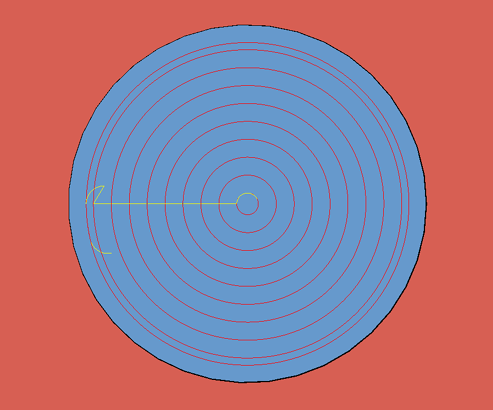

The result of using the Max Offset of 2.15, an XY Step of .25 and a Last Offset of .25 would look like this:







Rectangular Shapes

To calculate the distance of the Max Offset on a rectangular shape, you can take the width of the narrow side divided by 2 (to get to the middle of the shape) then subtract the tool radius and add the overlap amount you want on the first pass.

So, in example, to cut a 10" x 3" rectangular shape, you would need a Max Offset of about 1.35, using an overlap of .10 on the first pass.

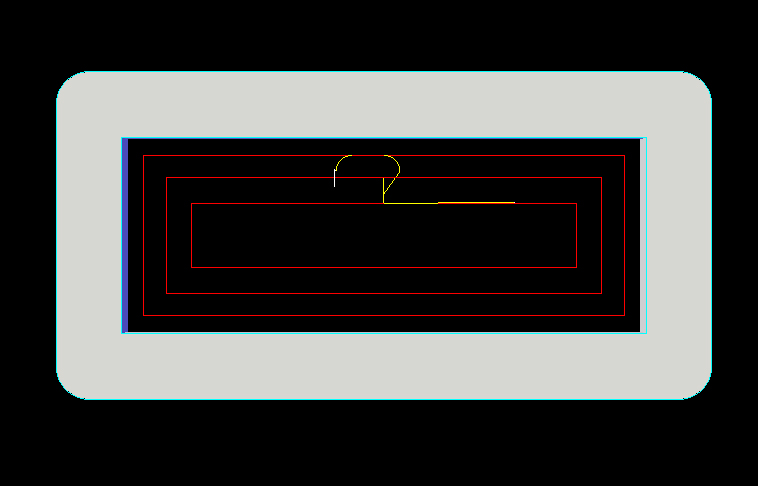

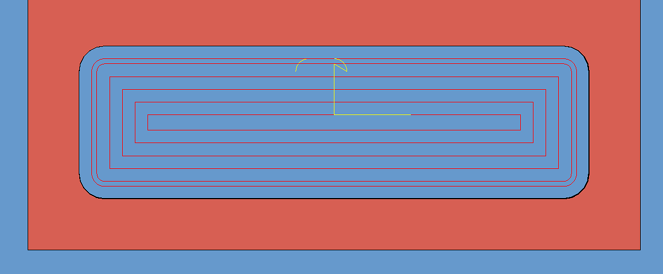

The result of using the Max Offset of 1.35, an XY Step of .25 and a Last Offset of .25 would look like this:









The reason for using a smaller first offset amount than the XY Step size or Last offset is only because you need to remove the overlap on the starting pass, each step after that will remove the overlap from the pass before it, so a smaller amount was used.  Feel free to use any amount that is just short of the tool radius, as some tools are slightly undersized even when new, and worse as they wear.



**Changing values in the cycle parameters may yield unexpected results with some settings or on some geometry.  Examine the toolpath and NC Code carefully before running your machine tool if you change these default settings.
