Creating a 'SLOT' in AutoCAD using Router-CIM
You can use Router-CIM within AutoCAD to draw the geometry of a SLOT in either the horizontal (aligned with the X axis in AutoCAD) or vertical (aligned with the Y axis in AutoCAD) direction. A Slot is defined as a rectangular piece of geometry with arcs on the end that match the width of the rectangle.
To use Router-CIM within AutoCAD to create what is defined as a SLOT, you will need to open AutoCAD and start Router-CIM within AutoCAD by selecting the Router-CIM icon under the toolbar or ribbon:
![RCIM_Ribbon_Icon](rcim_ribbon_icon.jpg)
This will start Router-CIM within the AutoCAD drawing. If you are using Router-CIM Interactive, make sure to select the correct post processor from the Configuration Wizard. Select here for more information on the 'Configuration Wizard'.
Once Router-CIM has been successfully started within the AutoCAD drawing, you can then type in the command line SLOT.
![Slot_Command_Line](slot_command_line.jpg)
This will start the SLOT command.
NOTE: If you type in SLOT and it comes up with Unknown Command, it means that Router-CIM was not started in that AutoCAD drawing.
The following information was based on a slot that was drawn centered on a 24 x 12 rectangle that was drawn from 0,0 in AutoCAD in Quadrant 1.
When the command is active, you will be prompted to follow a series of questions.
The first question is asking for the center point of the slot:
![Slot_Center_Point](slot_center_point.jpg)
The value that should be entered is either based on a button click or defining the X and Y coordinate.
The next question will ask for the distance between the two centers of the arcs. You can also think of this as the length of the rectangular feature:
![Slot_Distance_Between_Centers](slot_distance_between_centers.jpg)
The next question will ask for the DIAMETER of the arcs that are at the ends of the rectangle. You can think of this as the width of the rectangle.
![Slot_Arc_Diameter](slot_arc_diameter.jpg)
The final question will be whether to draw the SLOT aligned with the X axis in AutoCAD, Horizontal (H) or should it be aligned with the Y axis, Vertical (V).
![Slot_HorVert](slot_horvert.jpg)
Once this final question is completed, Router-CIM will draw a SLOT according to the information given.
NOTE: A SLOT will be drawn as 2 lines and 2 arcs that are NOT joined.

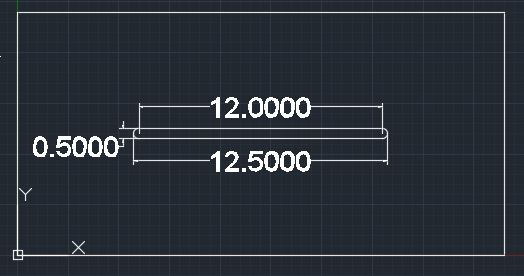

Here is an example of a SLOT drawn according to the information defined above:
![Slot_Example](slot_example.jpg)
