XY Stock Allowance



XYStock_CP

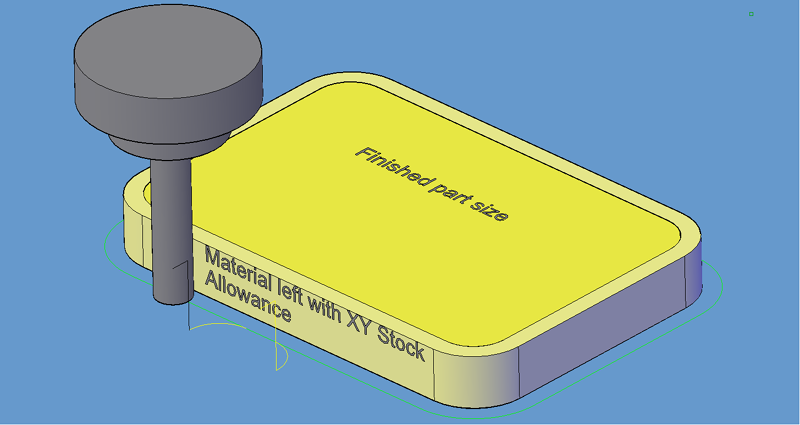

Placing a value in this parameter will offset the tool path to leave material for a finish pass.  For instance, placing .125 in the XY Stock Allowance and cutting a 6.4 x 4.0 shape will actually leave a part that is 6.65 x 4.25, by adding .125 to the offset of the tool path all the way around the part.



XY Stock Allowance.

XY Stock Allowance.
