Vertical Roughing Mode 1



Vertical Roughing Mode 1 creates offsets of the shape at the various Z levels, and removes material where it exists at that Z level, indexing to the next location where there is no material to remove.  The basic idea of this cycle is that the tool will be creating an approximation of the shape at each level, where the shape exists, and index where it does not to save time, and not cut 'air'.



This method is efficient if the tool can load and unload during the cut, and the indexing during some of the passes is not prohibitive to the tool or part.

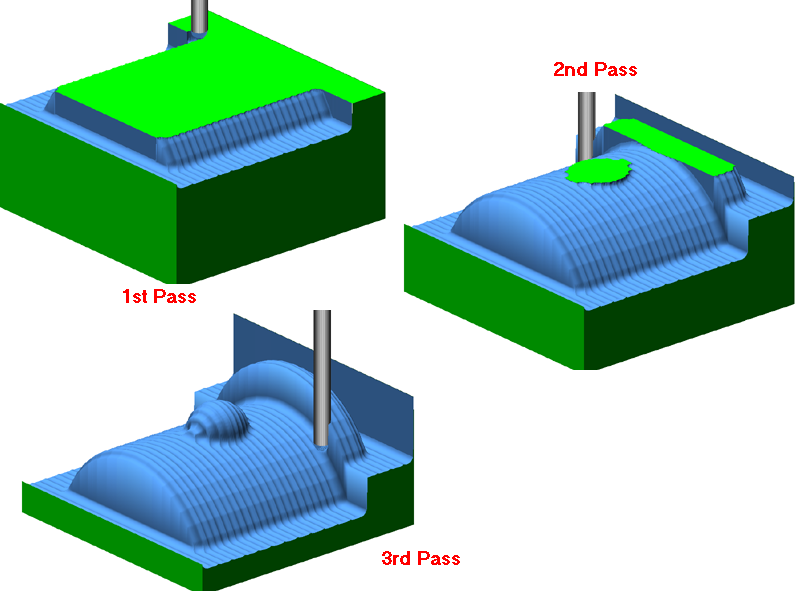

In this case the first pass removes some material from the sides of the block, but spends some time indexing to the next cut position, before dropping down to the second level.  The second level keeps the tool in the material for all but the top of the dome, and the third level keeps the tool in the material the entire time for the last rough pass.



These settings can be used with either the Zigzag XZ or Zigzag YZ cycles.



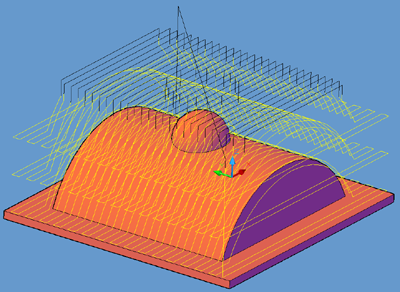

Nurbs_VertRough_Mode1_Example2

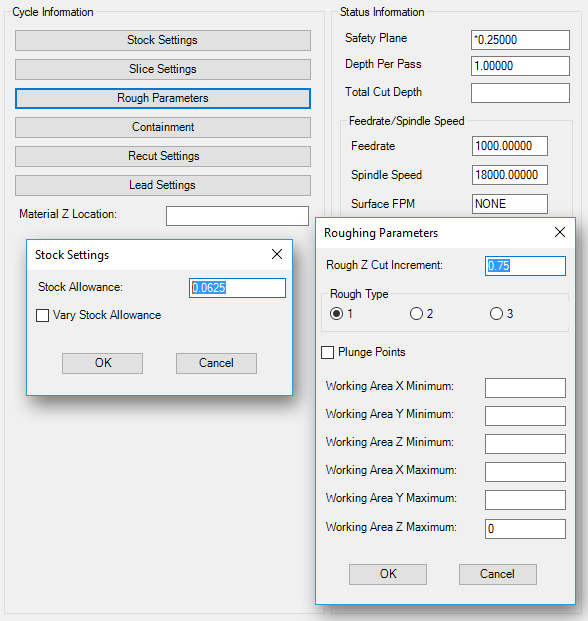

Using the MCADTPC.dwg and the following parameters, a similar roughing pass can be created.



Nurbs_VerticalRoughing_Mode1



VerticalRoughingMode1_ALL

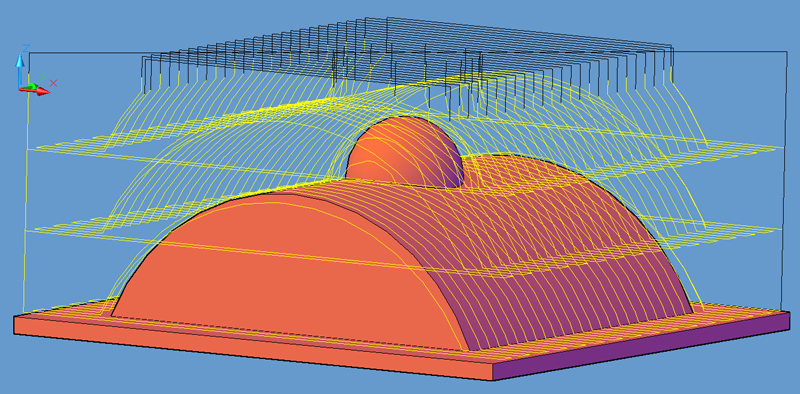

Nurbs_VertRough_Mode1_Example1



These roughing passes show where the tool lifts up and indexes over to the next cut position, only removing material from the part if it exists at that particular Z level.  If the step down in Z was smaller, the top few passes would index at the Safety Plane for some of their cuts, but the bottom passes would constantly be in material.
