Lead Ratio



LeadRatio_CP



Lead Ratio determines the angle of the ramp in Z during the lead in and lead out.  You can specify the Lead Ratio as a number that reflects the percentage of the angle from its default.  That means that if you want a lead that is twice the normal ramp length (shallower angle) enter 2.  If you want a lead that is steeper than the default, enter .5.

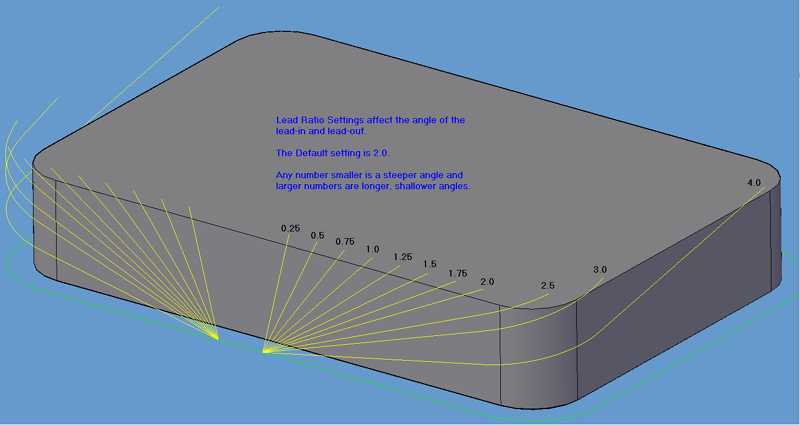

LeadRatio_Example



The Lead Ratio value effects both the lead in and the lead out.  There is no way to have a separate angle for the lead-in and lead-out.  If two numbers are input, only one is used.
