Export Material



Router-CIM Automation Suite will allow you to export one, several, or all materials to an importable database creating an .MTL file. This allows you to share or back up your material database so that you can import it into another database at a later time, or on another computer.



EX_Options



Export Material Database

To export materials, select one or more materials from the list or optionally select All Materials.



Once the materials are selected, select the 'Export Material Database' button.



EX_MatDB

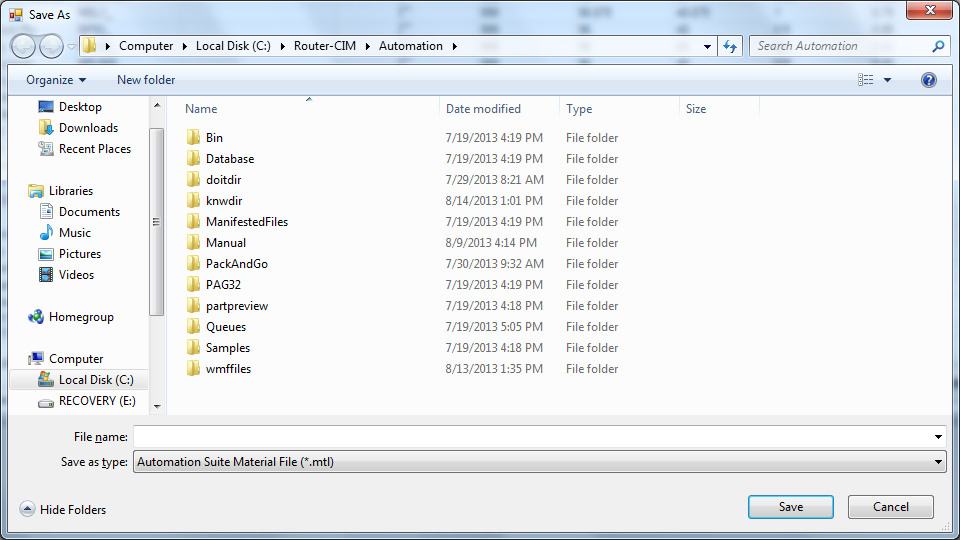

You will next be shown a screen where you can select a name and location for the exported materials file to be stored.



MaterialImEx4



Once you select 'Save', the material file will be exported and ready for later import.



Export Scrap Inventory

Router-CIM Automation Suite can also export the scrap inventory.



EX_ScrapInv

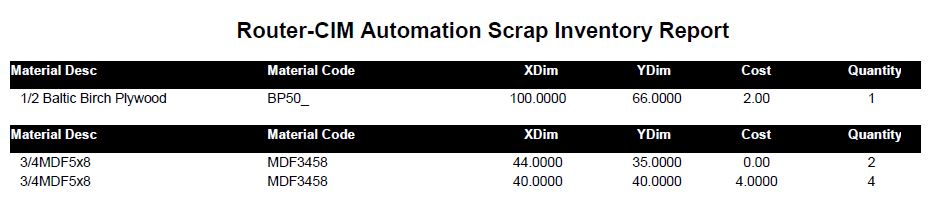

Router-CIM Automation Suite will create a PDF file that will list the scrap entries so they can be checked against what is on hand.

EX_ScrapInv_Result
