Vertical Finishing at Angle 0.0



Using the MCADTPC.dwg file, select the XNURBS_CUT-ZIGZAG_XZ Cycle.

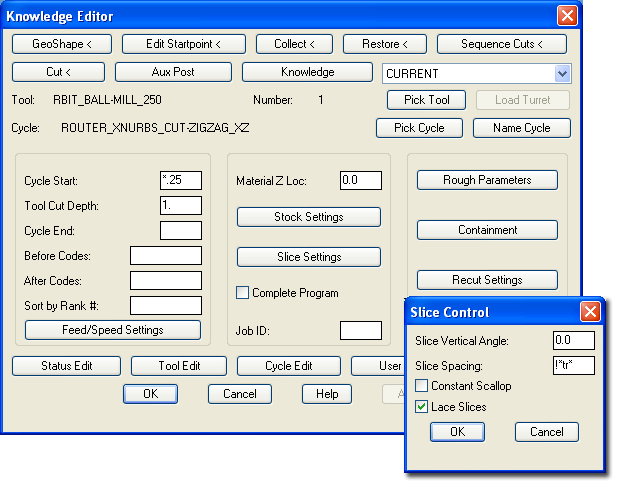

Select Slice Settings to be sure the Slice Vertical Angle is set to 0.0.



NurbsXZ_Angle0_Main

Press the 'Cut' Button.

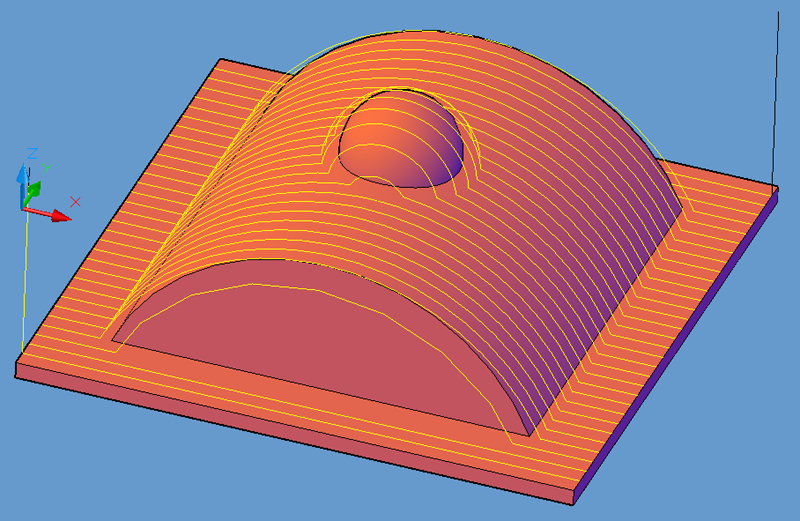

The output of these settings should produce a tool path like this:



Nurbs_XZ-Example1



The settings used are finishing settings.  There is no Stock Allowance used.  There are no roughing passes, lead-in, or lead-out.  Also Containment and Recutting are turned off.  Each of those setting will be explained, just a little bit later in this document.



The main purpose here is that you understand how the XZ slice creates a basic tool path in the X and Z direction with step over in the Y.
