Right Click Options for the Folder Tree

Router-CIM Automation Suite offers right click options for the jobs that are in the folder tree.



Note: For all the right click options, make sure to have the correct job selected before right clicking the job name.

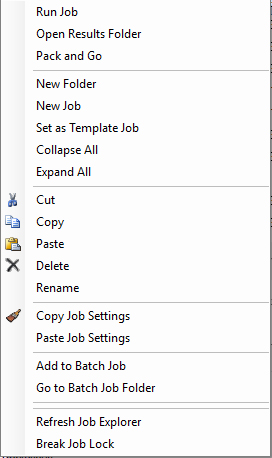

Right Click Job Options



Folder_Tree_Right_Click



Run Job

This option starts the selected job in Router-CIM Automation Suite and begins processing.



Open Results Folder

Selecting this option will show you the result folder for a job, if a job is selected.  If no job is selected, then the base results folder (the one containing all the others) is shown.  The default results folder can be specified in the system settings under System Folders >> Data Output Folder.



Pack and Go

The Pack and Go function will allow you to package any job into just one file that can be sent to another user of Router-CIM Automation Suite who can then unpackage that job and have the same settings as you did on your Router-CIM Automation Suite system when the job was run.



For more information on Pack and Go, click here.



New Folder

This option will create a new folder in the job tree.



New Job

This option will create a new job in the currently select folder.



Set as Template Job

This option will allow you to have a preset job setup for running a Right Click import. Multiple template jobs can be made but only one can be set to the default.



Collapse All

This option will close all the folders in the job tree.



Expand All

This option will open all the folders in the job tree.



Cut

Allows you to cut the folder or job.



Copy

Allows you to copy the folder or job.



Paste

Allows you to paste the folder or job. When you paste, select on the folder prior to right click and selecting paste.



Delete

This option deletes a job if a job is selected or an entire folder if a folder is selected. You cannot get these jobs or folders back once they are deleted, so be sure to have a pack and go of the job or a backup of the database if you think you might want them back at some point.



Rename

This option allows you to rename a job. This can also be accomplished by a slow double-click on the Job Name itself.



Copy Job Settings

This option allows you to copy all the Job Settings of the currently selected job. This includes the Post Processor, Knowledge Drawing and DOIT file as well.



Paste Job Settings

This option allows you to paste the copied Job Settings from another job and apply them to the currently selected job. This includes the Post Processor, Knowledge Drawing and DOIT file as well.



Add to Batch Job

This option allows you to create a copy of the currently selected job and it will add it to the Batch Folder.



For more information on the Batch Folder, click here.



Go to Batch Job Folder

This option allows you to go to the Batch Folder.



For more information on the Batch Folder, click here.



Refresh Job Explorer

This option will refresh the Job Tree. This is useful when using 'Shared Databases'.



Break Job Lock

This option will allow you access to a job that is locked by another user when using 'Shared Databases'.



Right Click Folder Tree Options



Folder_Tree_Right_Click2



New Folder

This option will create a new folder in the folder tree.



New Job

This option will create a new job in the currently selected folder.
