Restore Over Database



DB_Maint_Restore_Over_Icon



Using Restore Over will reconstruct a database that you had used previously and that was stored as a backup in the Router-CIM Automation Suite system, over the top of the currently selected database.

This option completely overwrites the current database with the data from the backup file you select.



Note: In order to restore a backup database, the .BAK file must be located in the C:/Router-CIM/Automation/Database/Backup folder.

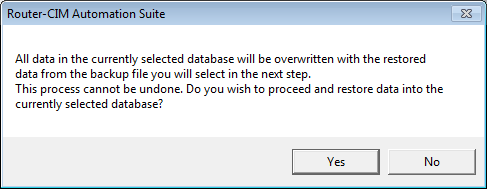

Once you select 'Restore Over', you will have to confirm that you want to overwrite the currently selected database with the backup version you select in the next step.



RCIMAUTO_014



Select 'Yes' to restore over the currently selected database.

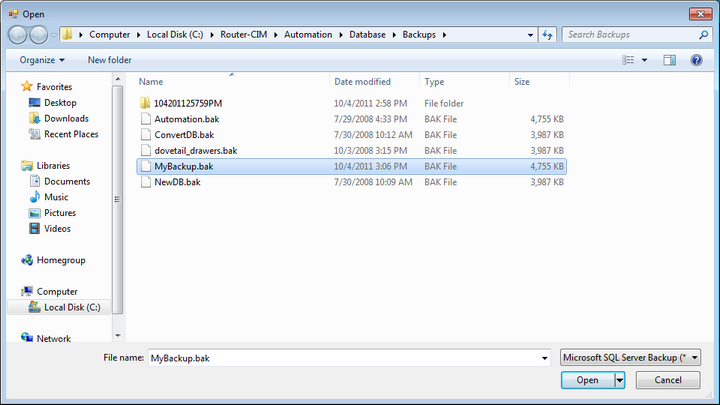

A new dialog box will open for you to select the database you want to restore into the currently selected one.



RCIMAUTO_016



Select the database you want to restore and then select 'Open'.



DB_Maint_Restore_Over

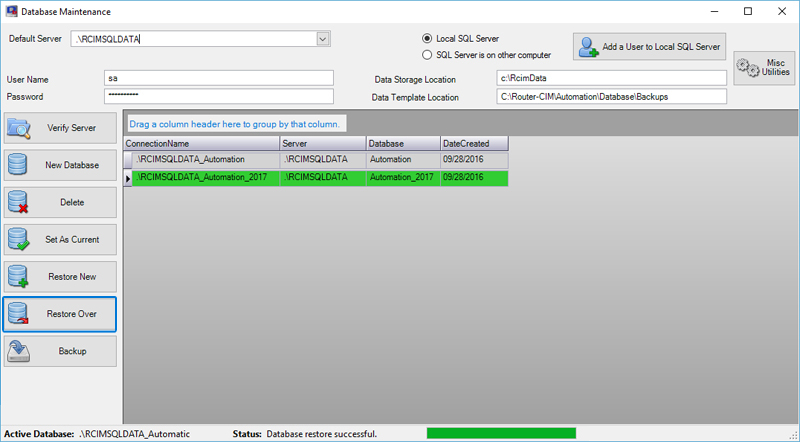

After selecting 'OK', you will see the database window, while the restore is in process.
