Drag and Drop Parts

Router-CIM Automation Suite supports the drag and drop feature for copying parts from job to job.



Simply select the part you want to copy. Once the part is selected, left click on your mouse and hold. You will then be able to copy the part to another job.

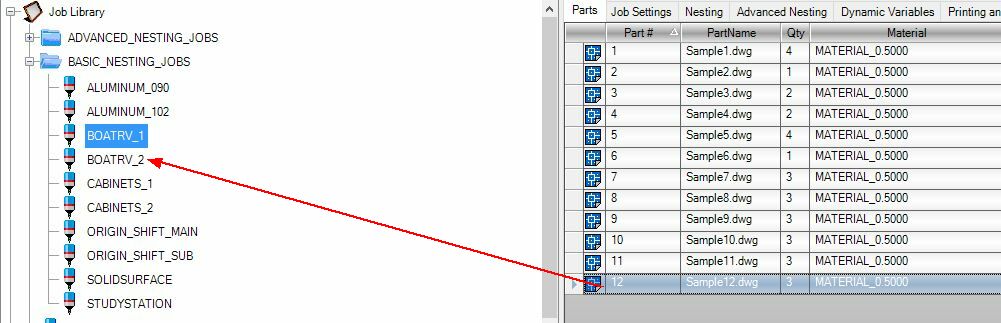

For example if you wanted to copy the part Sample12.dwg from BOATRV_1 to BOATRV_2, select the Sample12.dwg in BOATRV_1. Once the part is selected, left click on your mouse and hold to drag the part into BOATRV_2.



DragPart_1

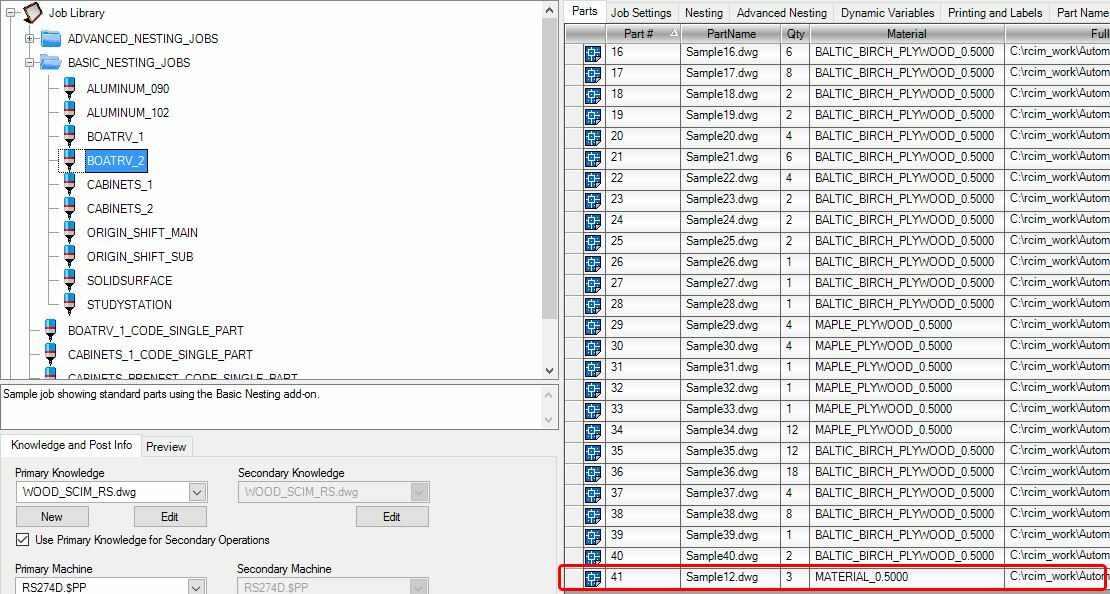

Release the left mouse button and the part will be copied into BOATRV_2.



Note:



DragPart_2
