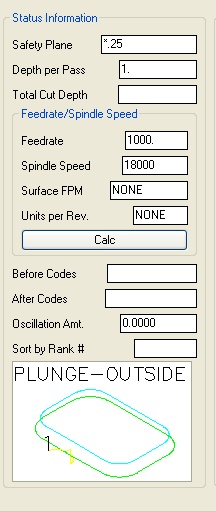

Status Information



Status Information is data related to the feed rates, spindles speeds, depths of cut etc. for the type of material and cutters available. The field has several parameters and each is explained in the following sections.



RcimStatus_1RcimStatus_2
