AutoNest Irregular Stock



In AutoNEST, Irregular Stock is a generic name used to describe the following :-

1.Irregular-shaped sheet for nesting
2.Layout with pre-nested parts
3.Remnant sheet /stock

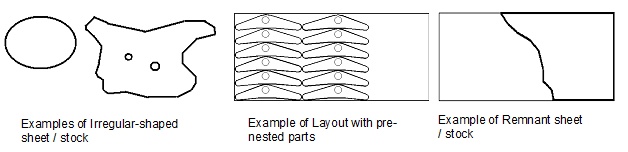

IRStock_Ex1

This section introduces three commands related to Irregular Stock within the AutoCAD environment. They are used to save or view irregular stocks that have been drawn or edited using AutoCAD commands. In addition, .DXF files can be converted into irregular stocks as well.



Irregular Stocks will also be saved automatically when you marked the “Save Remnant” check-box in the Nest Options within the TaskEdit dialog box. Please refer to TaskEdit. for details.



SaveIRStock_Icon

SaveIrStock

To save an irregular stock which you have constructed or drawn using AutoCAD DRAW commands

ConvertIRStock_Icon

ConvertIrStock

To convert DXF files to irregular stocks (.STK). As well as from irregular stock (.STK) files to DXF format.

ViewIRStock_Icon

ViewIrStock

To view a saved irregular stock (.STK file), click this icon.
