.SGD File Format

If “Toolpath” or “common-line” is invoked or if the “Nest rectangle parts in regular grids” at @NEST_CONTROL (set in the ANEST.SYS) is set to “1”, an extra file with the filename extension of .SGD will be generated after nesting. .SGD will be generated besides .SYM and.SUM. Assuming that the task or job name is DEMO, the filename generated will be demo.sgd.

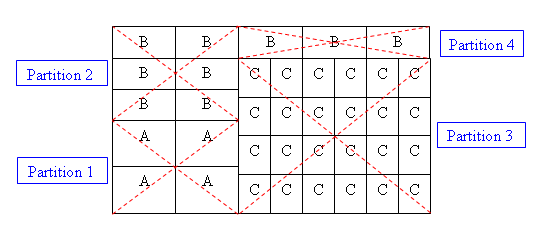

All the pertinent information of the nested results will be presented in “partitions blocks”. The layout below shows 3 distinct Parts (A,B & C) with 4 partitions blocks in total.



sgd1
