Restore New Database



DB_Maint_Restore_New_Icon



Using Restore New will reconstruct a database that you had used previously and that was stored as a backup in the Router-CIM Automation Suite system, in a new database.

This creates a new database with the data from the backup file you select.



Note: In order to restore a backup database, the .BAK file must be located in the C:/Router-CIM/Automation/Database/Backup folder.

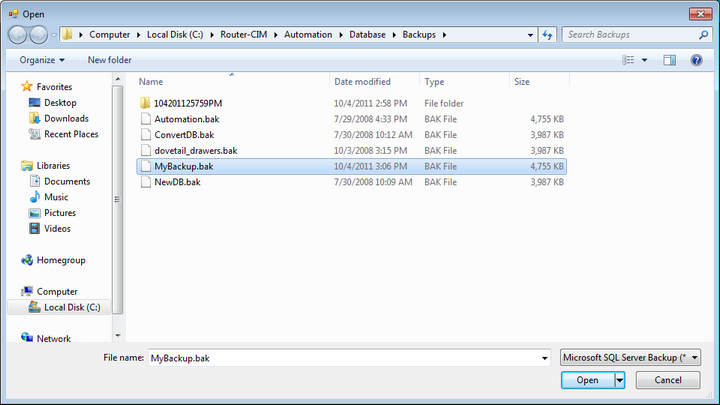

Once you select Restore New, you will have to select the database you want to restore.



RCIMAUTO_018

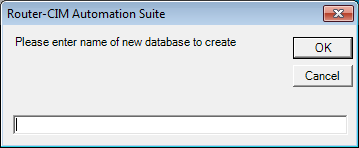

Then you will enter a name for the database you want created from the new process.



RCIMAUTO_009

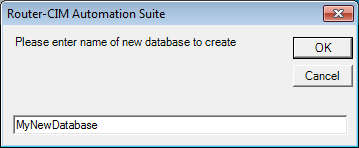

Type in a name for the new database.



RCIMAUTO_010



Then select 'OK'.

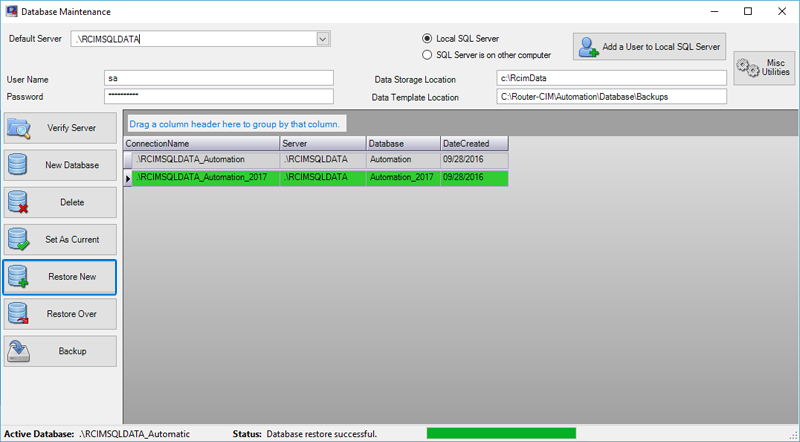

DB_Maint_Restore_New



After selecting 'OK', you will see the database window, while the restore is in process.
