Part Window

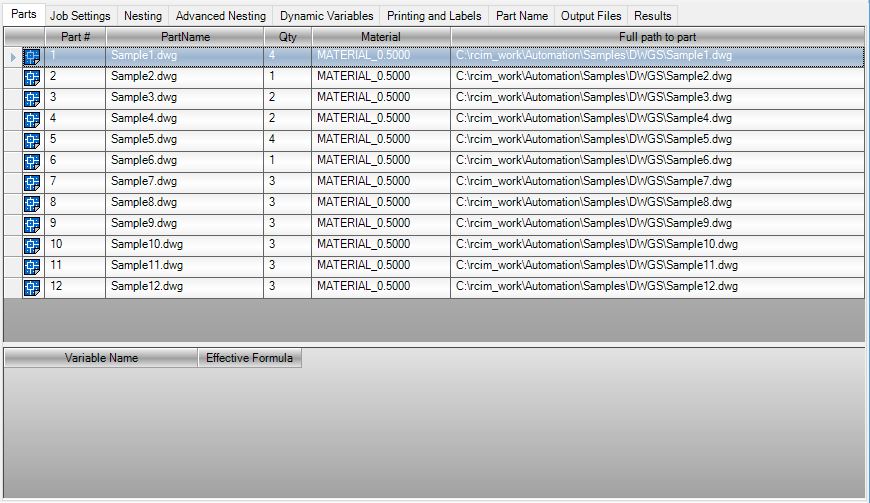

The Part Window contains all the settings for the parts inside the job. It is also the container for many of the job-specific settings. Each of these settings is available in one of the tabs at the top of the part window. These are available only when a job that contains parts is selected.



Part_Window_Interface

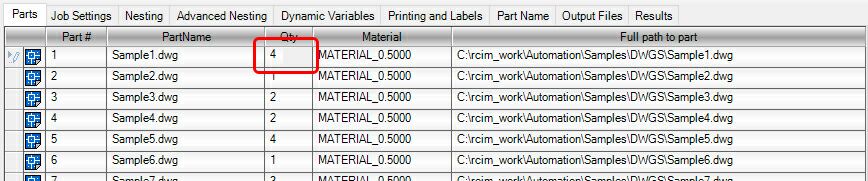

The part window itself is editable for some of the part settings. You can change a parts Quantity, or Material directly from the part window by selecting the field and changing the value. Select a part and then select the quantity field.  It will highlight indicating you can change the value.  In this case we will change it from 4, to 8.



Part_Window_Qty4



Part_Window_Qty8

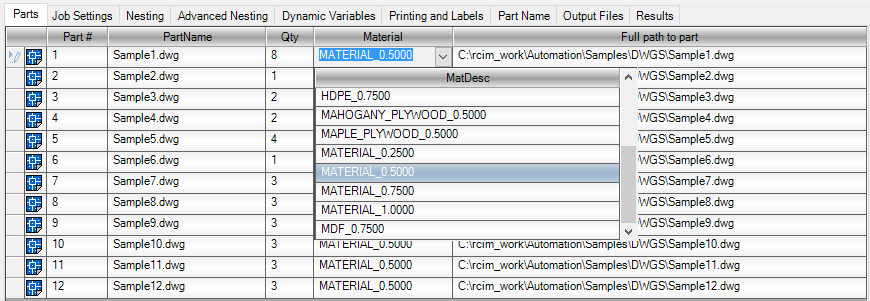

Changing the material is just as easy. You can pull down the materials available from the list on a selected part and change the material to another from the list.



Part_Window_Material



Selecting the a new material from the list changes the material that particular part is going to use.



Double-Clicking on any part will display the Part Properties. For more information on Part Properties, click here.



Part_Properties_Bsc



These are the part related properties that can be individually changed on any part in a job.
