Pack and Go

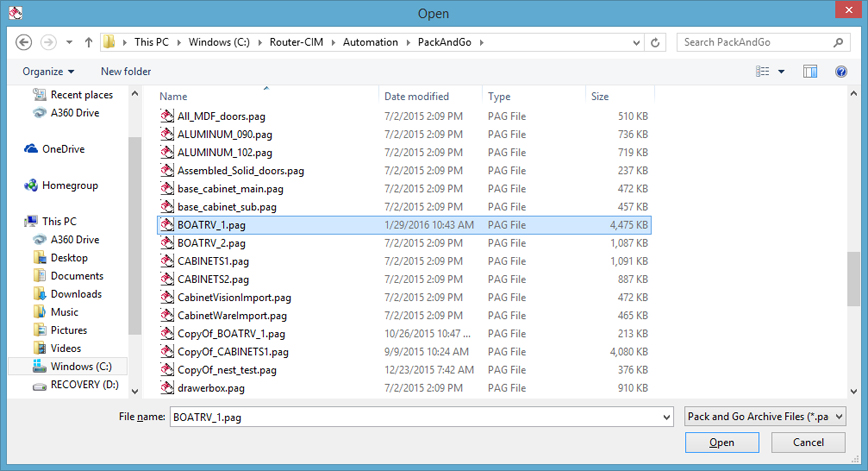

Pack and Go is the Router-CIM Automation Suite format for packaging all the elements of a job into one file.  To import that file into Router-CIM Automation Suite as a job, select pack and go from the import list, and a window will appear where you can select the PAG file from.



Pack_And_Go_Open

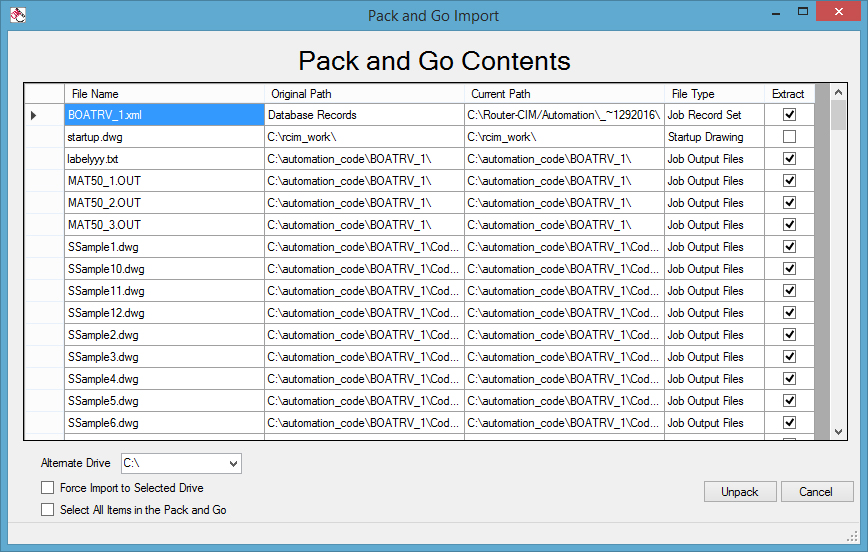

Once that file has been selected, you will be show a list of all the elements of a job that can be imported.  Most of the time, you can select all the elements, but a check box is provided for you to remove elements from the selection.



Pack_And_Go_Contents



Once you have all the elements selected that you wish to import, select the 'Unpack' button and a job will be created in the current folder.
