Cart Control Nesting



Open Cart Control Grouping Key

This is the field you can use to set the cart name or number for each part.  You can choose from Record Description, or Label Fields 1-8 (Customer Info 1-8 by default).

Whichever key you choose, when adding parts to a job, you will place the cart name or number in the specified field so that the nest program can group the cart parts together.



Cart Control Nesting



Cart Control Nesting will allow you to control, to some degree, the jobs that are nested together on your sheet stock when multiple jobs are run together in Router-CIM Automation Suite.  Normally if you place parts from multiple jobs together in Router-CIM Automation Suite, there is no control over which parts will end up together on a sheet, since yield is the highest concern at that point.  This can lead to confusion or lost time as the parts are sorted at the machine, after being cut, so that they can be stacked together with other parts from the same job.



As an example, if you had parts from 5 jobs together, it is entirely possible to have parts from all 5 jobs on the same sheet.  This would cause the workers removing the parts to have 5 stacks (or carts) at the machine so that they can place the parts from the same jobs together.  A more efficient way of performing these tasks might be to limit how many carts (or jobs) can be nested together on the same sheet.



So, if the max number of carts is set to 2, then you can only have parts from 2 carts together on the sheet at one time until one of the two carts is finished, then another cart is added so that there are still only two until one of those carts runs out of parts, then another is substituted, and so on until all the parts from all 5 carts are finished.  This way there are no more than two carts to stack at one time, or possibly 3 if you run out of parts for a cart part way through a sheet.

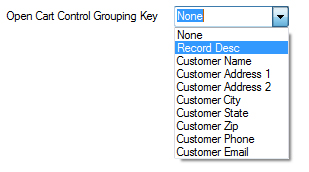

To control this in Router-CIM Automation Suite, you must have the Advanced Nesting option and in the Advanced Nesting tab set what field will be the Open Cart Control Grouping Key in the part parameters.



CartControlSetup

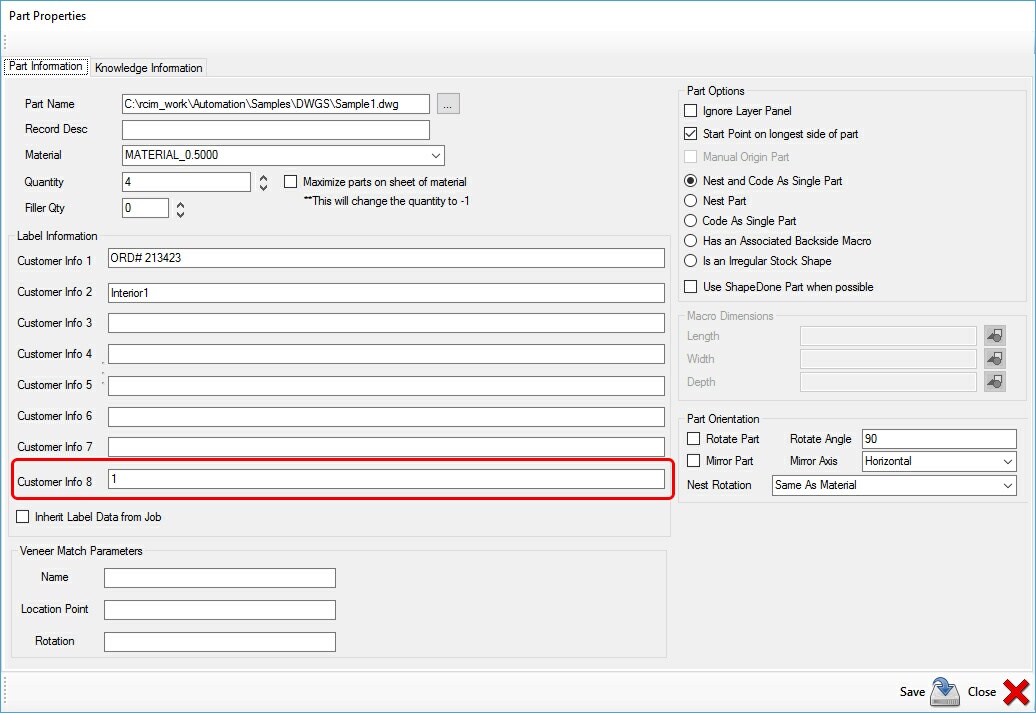

Once this is set, in your job you should set which parts belong to which job (or cart).  In the case below, the part is set for Cart 1.  You can use any description for the field that identifies the cart, as long as all the parts in the same cart use exactly the same description.



Cart_Control

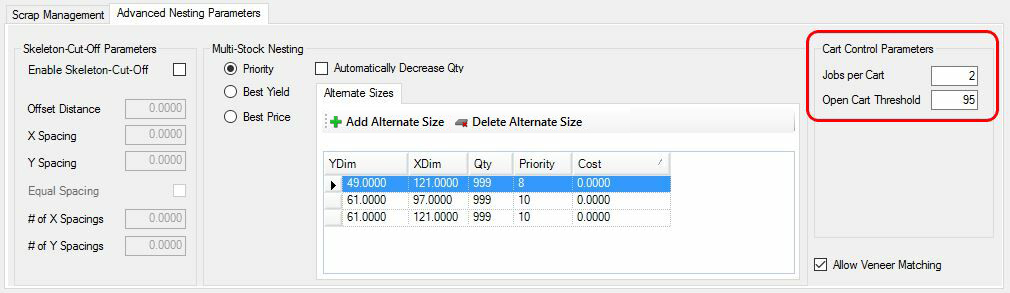

In the material, you can choose the number of Jobs per cart. To locate this option, go to your Material Database and select the material you want to setup for Cart Control. When you open the material, select on the Advanced Nesting Parameters tab and the Cart Control Parameters will be on the right side. This is really the number of groups of parts that have the same record description per sheet in this material. The Open cart threshold is an override that says if there is at least the percentage shown of available space then go ahead and add another group of parts with the same description on this sheet. In this case, only two carts can be on the same sheet because there would have to be 95% of the space (empty sheet) left over in order to add a third cart to the sheet.



Cart_Control_Material

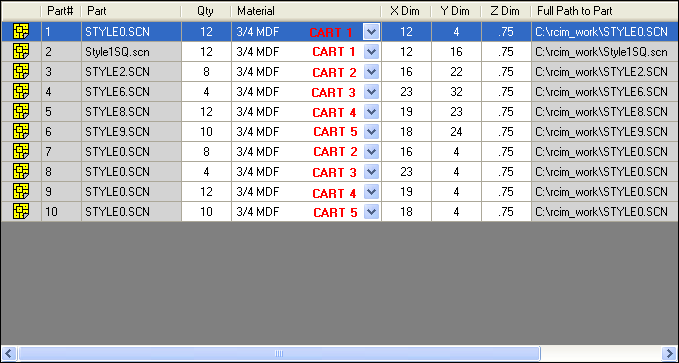

This example will use a job that has 10 parts that belong to 5 different carts.  The breakdown is like this:



CartControl_004



Once this job is nested with the previously set parameters the sheets will look like this:



Sheet1



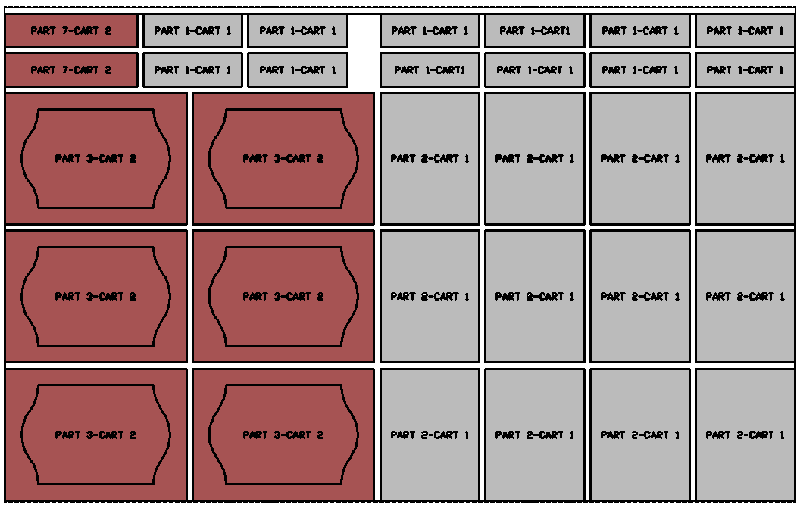

Sheet 1 has parts 1, 2, 3, and 7 which are from Cart 1 and Cart 2.  Cart 1 is finished.



Sheet2

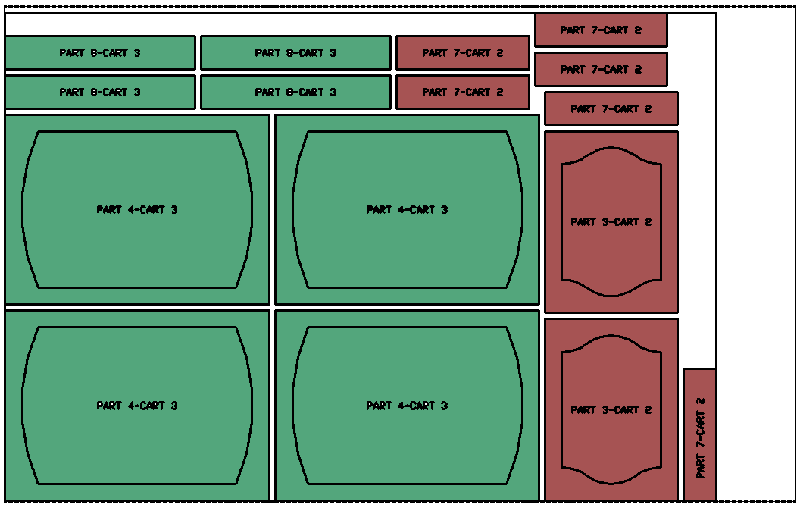

Sheet 2 has parts 3, 4, 7 and 8 which are from Cart 2 and Cart 3.  Cart 2 is finished.  Cart 3 is also finished.



Sheet3

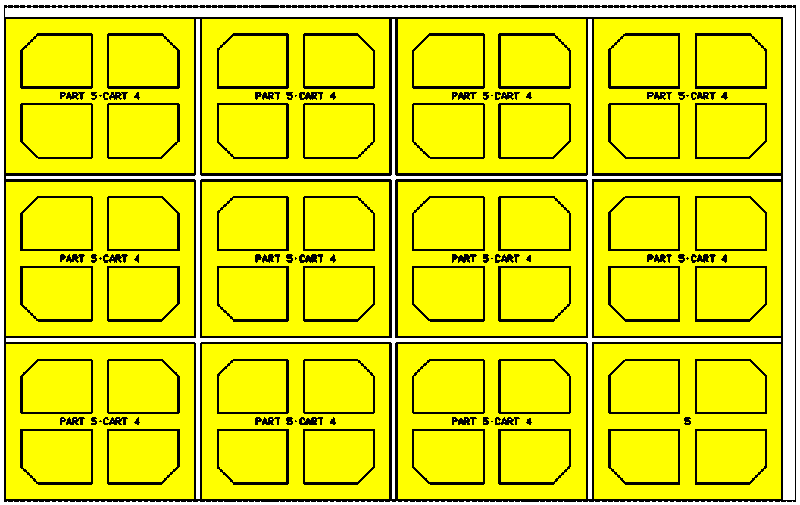

Sheet 3 has part 5 which is from Cart 4 only.

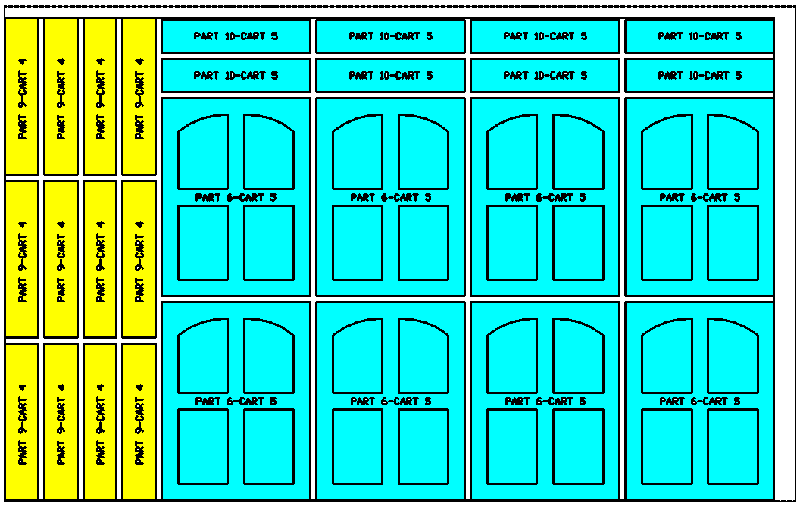

Sheet4



Sheet 4 has parts 6, 9, and 10 which are from Cart 4 and Cart 5.  Cart 4 is finished.

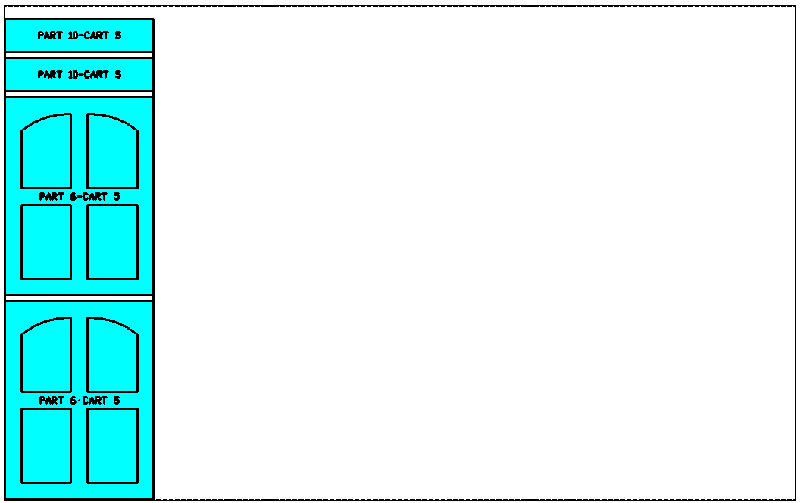

Sheet5
