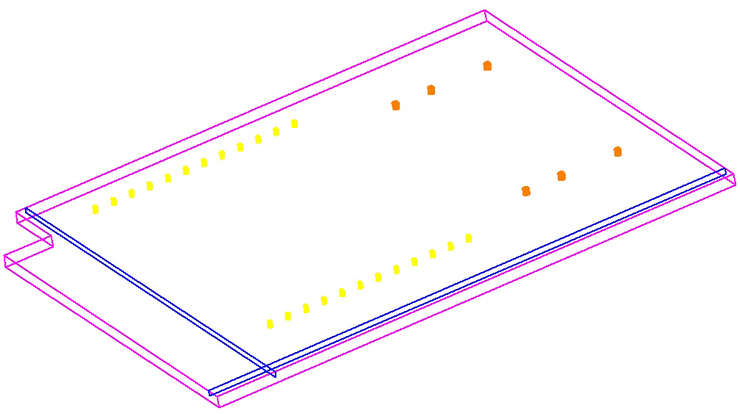

In this section you can find sample code to cut that part on a Komo machine.
%
:1234(CODESAMPLE1)
N1 G0 G17 G20 G28 G40 G80 G91 Z0 M5
N2 /M101 (MATERIAL HANDLING BUNK NUMBER **OPTIONAL CODES)
N3 /M28 (MATERIAL HANDLING CODE **OPTIONAL CODES)
N4 /M27 (MATERIAL HANDLING CODE **OPTIONAL CODES)
N5 G90
N6 G52 X0 Y0 Z0
N7 G8 P1
N8 M8
N9 (BORING BLOCK)
N10 G28 G91 Z0 M5
N11 G90 T307
N12 M3 S5000
N13 G0 G17 G54 P7 X32.6931 Y22.385
N14 G0 G43 H47 Z1. T2005 M6 (TOOL CHANGE LOOK AHEAD)
N15 G1 Z.375 F100.
N16 G0 Z1.
N17 G0 X28.769
N18 G1 Z.375 F100.
N19 G0 Z1.
N20 G0 X26.3007
N21 G1 Z.375 F100.
N22 G0 Z1.
N23 G0 X32.6931 Y7.7522
N24 G1 Z.375 F100.
N25 G0 Z1.
N26 G0 X28.769
N27 G1 Z.375 F100.
N28 G0 Z1.
N29 G0 X26.3007
N30 G1 Z.375 F100.
N31 G0 Z1.
N32 (BORING BLOCK)
N33 G28 G91 Z0 M5
N34 G90 T302
N35 T303
N36 T304
N37 T305
N38 T306
N39 M3 S5000
N40 G0 G17 G54 P2 X15.8186 Y5.4264
N41 G0 G43 H42 Z1.
N42 G1 Z.375 F100.
N43 G0 Z1.
N44 G0 X9.5196
N45 G1 Z.375 F100.
N46 G0 Z1.
N47 (BORING BLOCK)
N48 G28 G91 Z0 M5
N49 G90 T304
N50 T305
N51 M3 S5000
N52 G0 G17 G54 P4 X7.Y5.4264
N53 G0 G43 H44 Z1.
N54 G1 Z.375 F100.
N55 G0 Z1.
N56 G0 Y25.
N57 G1 Z.375 F100.
N58 G0 Z1.
N59 (BORING BLOCK)
N60 G28 G91 Z0 M5
N61 G90 T302
N62 T303
N63 T304
N64 T305
N65 T306
N66 M3 S5000
N67 G0 G17 G54 P2 X9.5196 Y25.
N68 G0 G43 H42 Z1.
N69 G1 Z.375 F100.
N70 G0 Z1.
N71 G0 X15.8186
N72 G1 Z.375 F100.
N73 G0 Z1.
N74 (ROUTER-BIT .250 DIA. ON DADOES)
N75 G28 G91 Z0 M5
N76 G90 T2005 M6
N77 T102
N78 M3 S18000
N79 G0 G17 G55 X1.25 Y1.
N80 G0 G43 H5 Z1.
N81 G1 X0. Z.375 F325.
N82 X34.75 F650.
N83 X36.
N84 X34.75Z1.
N85 G0 X4. Y26.75
N86 G1 Y28. Z.375 F325.
N87 Y0. F650.
N88 Y1.25 Z1.
N89 (ROUTER-BIT .5 DIA. PROFILE CUT)
N90 G28 G91 Z0 M5
N91 G90 T2001 M6
N92 T102
N93 M3 S18000
N94 G0 G17 G55 X17.3881 Y28.249
N95 G0 G43 H1 Z1.
N96 G41 D1 G1 X17.6631 F325.
N97 X19.6631 Z0.
N98 X36.249 F650.
N99 Y-.249
N100 X-.249
N101 Y24.249
N102 X3.0771
N103 Y28.249
N104 X19.6631
N105 X20.1631 F650.
N106 X22.1631 Z1.
N107 G40 G0 X22.4381
N108 G28 G91 Z0 M5
N109 G28 G91 X0 M9
N110 G90
N111 G52 X0 Y0 Z0
N112 G8 P0
N113 M30
%
