Operation

Panel

The Panel Operation is the basic dimensional reference for a Macro. It defines the Length, Width and Thickness references that will be used when developing the Macro.

•	Length - X dimension

•	Width - Y dimension

•	Thickness - Z dimension

•	Corner Radius - radius of filleted corners

•	Units - Inch or Metric

All dimensions are defined from the World Coordinate position of 0, 0, 0. The Z dimension is defined in the negative Z direction even though the dimension is defined as a positive number. The start definition coordinate is 0, 0, 0 and the opposite corner of the Panel would have the coordinate of 18, 24, -0.75.

Ignore Panel on Execute - The Panel definition can be used as just a reference and not to be actually executed by selecting this option.

Macro Notes - a 128 text box for any notes you may want. These notes are only saved in the database and are not available when saved to file. When opening a file, the name of the file is indicated in the Notes as shown.

Record Data - Reference Editor Interface. Notes in Record Data are saved to file.

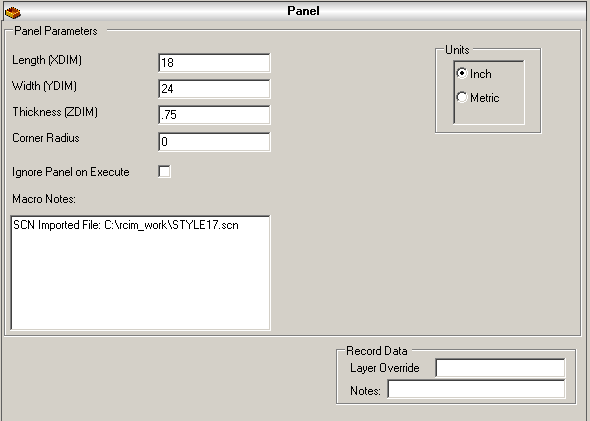

Mac_Operation_Panel

Reference the Viewer Interface for Axis indicators.

Mac_Editor_Panel

Panel Parameter Requirements

The Length, Width and Thickness Panel parameters require numeric values only, no variables. An attempt to enter a variable in these fields will not be accepted.

Validation Process

The Length, Width and Thickness parameters must be all be positive numbers greater than zero.
