Color and Layers Settings



The 'Color and Layers Settings' allow you to adjust and customize the color and names (prefixes) of the layers.

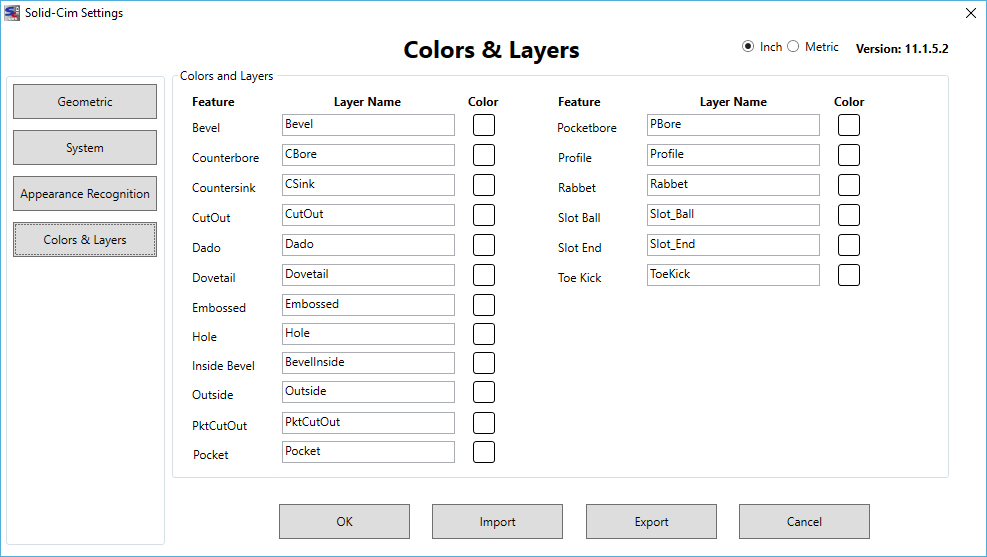

Color_And_Layers_Tab



To change the Name of a Layer Prefix:

To the right of each layer name is the layer name text field. Simply select in the text field and customize your layer name prefix.



Note: Solid-CIM 3D will use the standard format for everything that is included after the layer name prefix.



Color_And_Layers_Name





To Change the Color of a Layer:

To the right of each layer name is a color selection box. Simply select the box and the color options will appear.

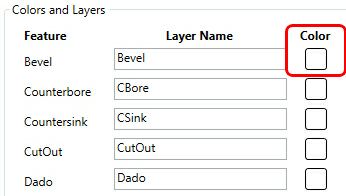

Color_And_Layers_Inset

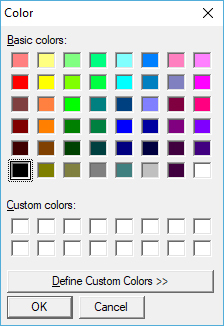

Layer_Colors



Once a color is defined, Solid-CIM 3D will adjust the layer color according to what has been saved in the settings.
